T413G Appliance Clamp

with independent sideshift - rubber coated arms - both arms fix - 2 hydraulic functions


The KAUP Appliance Clamp T413G is used for the transport of white and brown product as well as other wide loading property. Equipped with very slender arms this attachment is suited particularly for the truck and container loading.

  • Low lost load - very good residual capacities
  • Very good visibility conditions
  • Very slender clamp arms
  • Independent sideshift serially
  • Load backrest optionally

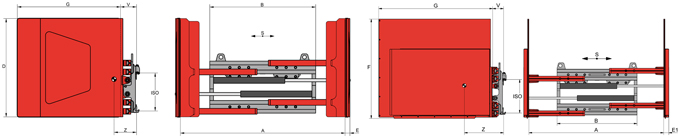

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight kg
1T413G 700 500 ±100 500-1.680 970 700 23 690 2 153 207 275
1T413G 700 500 ±100 500-1.680 970 1.000 23 690 2 153 248 332
1T413G 700 500 ±100 500-1.680 970 1.200 23 690 2 153 250 353
1T413G 700 500 ±100 350-1.450 1.040 700 23 690 2 153 206 270
1T413G 700 500 ±100 350-1.450 1.040 1.000 23 690 2 153 249 323
1T413G 700 500 ±100 350-1.450 1.040 1.200 23 690 2 153 253 342
1T413G 700 500 ±100 550-1.850 1.040 700 23 690 2 153 203 280
1T413G 700 500 ±100 550-1.850 1.040 1.000 23 690 2 153 245 337
1T413G 700 500 ±100 550-1.850 1.040 1.200 23 690 2 153 247 359
1T413G 700 500 ±100 460-1.760 1.130 700 23 690 2 153 201 285
1T413G 700 500 ±100 460-1.760 1.130 1.000 23 690 2 153 242 342
1T413G 700 500 ±100 460-1.760 1.130 1.200 23 690 2 153 245 364
1T413G 700 500 ±100 490-1.890 1.200 700 23 690 2 153 199 290
1T413G 700 500 ±100 490-1.890 1.200 1.000 23 690 2 153 240 347
1T413G 700 500 ±100 490-1.890 1.200 1.200 23 690 2 153 243 368
1T413G 700 500 ±100 495-2.345 1.660 700 23 690 2 158 206 388
1T413G 700 500 ±100 495-2.345 1.660 1.000 23 690 2 153 206 399
1T413G 700 500 ±100 495-2.345 1.660 1.200 23 690 2 153 227 432
1,5T413G 1.250 500 ±100 515-1.695 970 700 28 690 2 158 221 351
1,5T413G 1.250 500 ±100 515-1.695 970 1.000 23 690 2 153 220 362
1,5T413G 1.250 500 ±100 515-1.695 970 1.200 23 690 2 153 241 395
1,5T413G 1.250 500 ±100 475-1.655 970 1.000 63 1.000 2 133 365 440
1,5T413G 1.250 500 ±100 475-1.655 970 1.000 63 1.200 2 133 421 453
1,5T413G 1.250 500 ±100 475-1.655 970 1.200 63 1.200 2 133 491 508
1,5T413G 1.250 500 ±100 365-1.465 1.040 700 28 690 2 158 221 346
1,5T413G 1.250 500 ±100 365-1.465 1.040 1.000 23 690 2 153 221 353
1,5T413G 1.250 500 ±100 365-1.465 1.040 1.200 23 690 2 153 240 398
1,5T413G 1.250 500 ±100 325-1.425 1.040 1.000 63 1.000 2 133 364 442
1,5T413G 1.250 500 ±100 325-1.425 1.040 1.000 63 1.200 2 133 420 455
1,5T413G 1.250 500 ±100 325-1.425 1.040 1.200 63 1.200 2 133 491 510
1,5T413G 1.250 500 ±100 445-1.625 1.040 700 28 690 2 158 221 347
1,5T413G 1.250 500 ±100 445-1.625 1.040 1.000 23 690 2 153 221 354
1,5T413G 1.250 500 ±100 445-1.625 1.040 1.200 23 690 2 153 243 384
1,5T413G 1.250 500 ±100 405-1.585 1.040 1.000 63 1.000 2 133 364 442
1,5T413G 1.250 500 ±100 405-1.585 1.040 1.000 63 1.200 2 133 420 455
1,5T413G 1.250 500 ±100 405-1.585 1.040 1.200 63 1.200 2 133 491 510
1,5T413G 1.250 500 ±100 475-1.775 1.130 700 28 690 2 158 216 361
1,5T413G 1.250 500 ±100 475-1.775 1.130 1.000 23 690 2 153 216 373
1,5T413G 1.250 500 ±100 475-1.775 1.130 1.200 23 690 2 153 237 406
1,5T413G 1.250 500 ±100 485-1.835 1.130 1.000 63 1.000 2 133 361 452
1,5T413G 1.250 500 ±100 485-1.835 1.130 1.000 63 1.200 2 133 417 465
1,5T413G 1.250 500 ±100 485-1.835 1.130 1.200 63 1.200 2 133 487 520
1,5T413G 1.250 500 ±100 505-1.905 1.200 700 28 690 2 158 214 367
1,5T413G 1.250 500 ±100 505-1.905 1.200 1.000 23 690 2 153 214 378
1,5T413G 1.250 500 ±100 505-1.905 1.200 1.200 23 690 2 153 235 411
1,5T413G 1.250 500 ±100 465-1.865 1.200 1.000 63 1.000 2 133 360 461
1,5T413G 1.250 500 ±100 465-1.865 1.200 1.000 63 1.200 2 133 415 474
1,5T413G 1.250 500 ±100 465-1.865 1.200 1.200 63 1.200 2 133 485 529
2T413G 2.000 500 ±100 550-1.850 1.040 1.000 63 1.000 2 143 355 520
2T413G 2.000 500 ±100 550-1.850 1.040 1.000 63 1.200 2 143 411 538
2T413G 2.000 500 ±100 550-1.850 1.040 1.200 63 1.200 2 143 481 593
2T413G 2.000 500 ±100 550-1.850 1.040 1.000 63 1.000 3 143 355 520
2T413G 2.000 500 ±100 550-1.850 1.040 1.000 63 1.200 3 143 411 538
2T413G 2.000 500 ±100 550-1.850 1.040 1.200 63 1.200 3 143 481 593
2T413G 2.000 500 ±100 460-1.760 1.130 1.000 63 1.000 2 143 353 525
2T413G 2.000 500 ±100 460-1.760 1.130 1.000 63 1.200 2 143 409 543
2T413G 2.000 500 ±100 460-1.760 1.130 1.200 63 1.200 2 143 478 598
2T413G 2.000 500 ±100 460-1.760 1.130 1.000 63 1.000 3 143 353 525
2T413G 2.000 500 ±100 460-1.760 1.130 1.000 63 1.200 3 143 409 543
2T413G 2.000 500 ±100 460-1.760 1.130 1.200 63 1.200 3 143 478 598
2T413G 2.000 500 ±100 460-1.960 1.330 1.000 63 1.000 2 143 339 549
2T413G 2.000 500 ±100 460-1.960 1.330 1.000 63 1.200 2 143 395 567
2T413G 2.000 500 ±100 460-1.960 1.330 1.200 63 1.200 2 143 464 622
2T413G 2.000 500 ±100 460-1.960 1.330 1.000 63 1.000 3 143 339 549
2T413G 2.000 500 ±100 460-1.960 1.330 1.000 63 1.200 3 143 395 567
2T413G 2.000 500 ±100 460-1.960 1.330 1.200 63 1.200 3 143 464 622
2T413G 2.000 500 ±100 570-2.370 1.520 1.000 63 1.000 2 143 332 573
2T413G 2.000 500 ±100 570-2.370 1.520 1.000 63 1.200 2 143 388 591
2T413G 2.000 500 ±100 570-2.370 1.520 1.200 63 1.200 2 143 457 646
2T413G 2.000 500 ±100 570-2.370 1.520 1.000 63 1.000 3 143 332 573
2T413G 2.000 500 ±100 570-2.370 1.520 1.000 63 1.200 3 143 388 591
2T413G 2.000 500 ±100 570-2.370 1.520 1.200 63 1.200 3 143 457 646
