T413GT-1L Telescopic Appliance/Carton Clamp

with independent sideshift - rubber coated arms - one arm fix, one arm swivelling - 2 hydraulic functions


The KAUP Telescopic Appliance-/Carton Clamp T413GT-1L is used for the transport of white and brown product as well as other wide loading property.

  • Good visibility conditions
  • Extremely big opening ranges with small construction width
  • Independent sideshift serially
  • Load backrest optionally

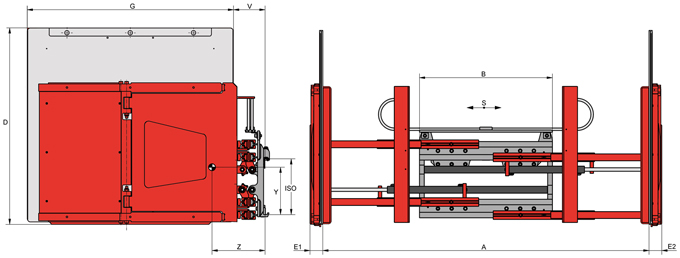

Model Cap. kg LCD mm S mm A mm B mm D mm E1 mm E2 mm G mm ISO V mm CofG Z mm Weight kg
2T413GT-1L 1.250 700 ±100 480-2.740 1.330 1.050 60 60 1.380 2 276 411 864
3T413GT-1L 1.800 700 ±100 480-2.740 1.330 1.050 60 60 1.380 3 276 405 889
