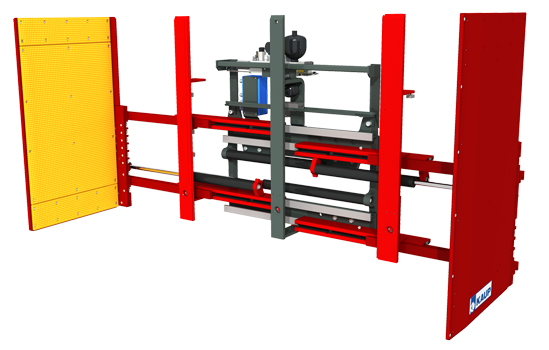

T413GT Telescopic Applications Clamp

with independent sideshift - rubber coated arms - both arms fix - 2 hydraulic functions


The KAUP Telescopic Appliance Clamp T413GT is used where white and brown product as well as other wide loading property is used.

  • Very good visibility conditions
  • Extremely big opening ranges with small construction width
  • Independent sideshift serially
  • Load backrest optional

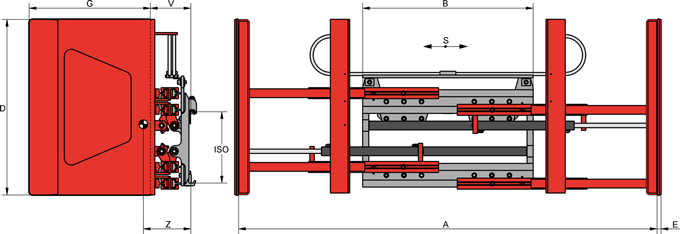

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight kg
1T413GT 700 500 ±100 380-2.380 970 1.000 28 690 2 232 270 435
1,5T413GT 1.250 500 ±100 440-2.440 970 1.000 28 690 2 242 285 470
1,5T413GT 1.250 500 ±100 410-2.610 1.200 1.000 28 690 2 242 285 486
1,5T413GT 1.250 500 ±100 440-2.440 970 1.200 28 690 2 242 300 515
1,5T413GT 1.250 500 ±100 410-2.610 1.200 1.200 28 690 2 242 295 530
2T413GT 1.250 700 ±100 475-2.475 1.130 1.050 78 1.380 2 281 438 830
2T413GT 1.250 700 ±100 450-2.750 1.330 1.050 78 1.380 2 281 429 871
3T413GT 1.800 700 ±100 475-2.475 1.130 1.050 78 1.380 3 281 424 854
3T413GT 1.800 700 ±100 450-2.750 1.330 1.050 78 1.380 3 281 416 895
