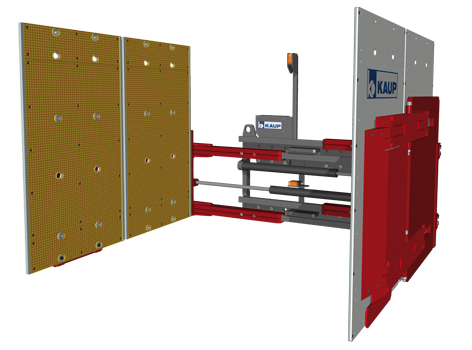

T414-2L Appliance/Carton Clamp

with independent sideshift - rubber coated arms - two contact pads per swivelling arm - 2 hydraulic functions


The KAUP Appliance-/Carton Clamp T414-2L is ideal for lifting wide loads with different load masses.

  • Low lost load - very good residual capacities
  • Good visibility conditions
  • Independent sideshift serially
  • Load backrest optionally

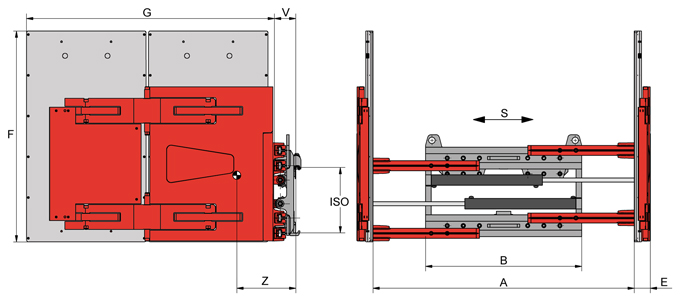

Model Cap. kg LCD mm S mm A mm B mm E mm F mm G mm ISO V mm CofG Z mm Weight kg
1,5T414-2L 1.250 500 ±100 480-1.660 970 60 1.000 1.000 2 133 345 495
1,5T414-2L 1.250 500 ±100 480-1.660 970 60 1.000 1.200 2 133 401 535
1,5T414-2L 1.250 500 ±100 480-1.660 970 60 1.200 1.200 2 133 472 599
1,5T414-2L 1.250 500 ±100 480-1.660 970 60 1.200 1.380 2 133 492 647
1,5T414-2L 1.250 500 ±100 330-1.430 1.040 60 1.000 1.000 2 133 344 497
1,5T414-2L 1.250 500 ±100 330-1.430 1.040 60 1.000 1.200 2 133 400 538
1,5T414-2L 1.250 500 ±100 330-1.430 1.040 60 1.200 1.200 2 133 470 602
1,5T414-2L 1.250 500 ±100 330-1.430 1.040 60 1.200 1.380 2 133 490 649
1,5T414-2L 1.250 500 ±100 410-1.590 1.040 60 1.000 1.000 2 133 344 497
1,5T414-2L 1.250 500 ±100 410-1.590 1.040 60 1.000 1.200 2 133 400 538
1,5T414-2L 1.250 500 ±100 410-1.590 1.040 60 1.200 1.200 2 133 470 602
1,5T414-2L 1.250 500 ±100 410-1.590 1.040 60 1.200 1.380 2 133 490 649
1,5T414-2L 1.250 500 ±100 490-1.840 1.130 60 1.000 1.000 2 133 341 507
1,5T414-2L 1.250 500 ±100 490-1.840 1.130 60 1.000 1.200 2 133 397 547
1,5T414-2L 1.250 500 ±100 490-1.840 1.130 60 1.200 1.200 2 133 467 611
1,5T414-2L 1.250 500 ±100 490-1.840 1.130 60 1.200 1.380 2 133 486 659
1,5T414-2L 1.250 500 ±100 470-1.870 1.200 60 1.000 1.000 2 133 340 516
1,5T414-2L 1.250 500 ±100 470-1.870 1.200 60 1.000 1.200 2 133 395 556
1,5T414-2L 1.250 500 ±100 470-1.870 1.200 60 1.200 1.200 2 133 465 620
1,5T414-2L 1.250 500 ±100 470-1.870 1.200 60 1.200 1.380 2 133 484 668
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.000 1.000 2 143 337 565
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.000 1.200 2 143 397 610
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.200 1.200 2 143 428 674
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.200 1.380 2 143 481 731
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.000 1.000 3 143 337 565
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.000 1.200 3 143 397 610
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.200 1.200 3 143 428 674
2T414-2L 2.000 500 ±100 525-1.725 970 60 1.200 1.380 3 143 481 731
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.000 2 143 335 570
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.200 2 143 395 615
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.200 2 143 426 679
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.380 2 143 479 736
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.000 3 143 335 570
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.000 1.200 3 143 395 615
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.200 3 143 426 679
2T414-2L 2.000 500 ±100 555-1.855 1.040 60 1.200 1.380 3 143 479 736
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.000 2 143 333 575
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.200 2 143 392 620
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.200 2 143 423 684
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.380 2 143 476 741
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.000 3 143 333 575
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.000 1.200 3 143 392 620
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.200 3 143 423 684
2T414-2L 2.000 500 ±100 465-1.765 1.130 60 1.200 1.380 3 143 476 741
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.000 2 143 319 599
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.200 2 143 378 644
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.200 2 143 409 708
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.380 2 143 462 765
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.000 3 143 319 599
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.000 1.200 3 143 378 644
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.200 3 143 409 708
2T414-2L 2.000 500 ±100 465-1.965 1.330 60 1.200 1.380 3 143 462 765
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.000 2 143 312 623
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.200 2 143 371 668
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.200 2 143 402 732
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.380 2 143 455 789
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.000 3 143 312 623
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.000 1.200 3 143 371 668
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.200 3 143 402 732
2T414-2L 2.000 500 ±100 575-2.375 1.520 60 1.200 1.380 3 143 455 789
