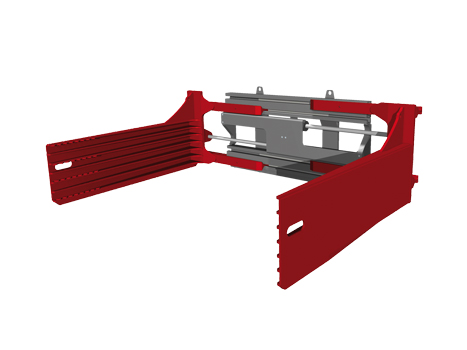

T413RC_VSS Recycling Bale Clamp

with valveblock sideshift dependent on opening range with cylinder- and sideshift protection - 2 hydraulic functions

Request Pricing

KAUP Recycling Clamps are suitable for the transportation of non- palletised reusable materials in the recycling industry. This special range of bale clamps has several specific features, e.g. clamping arms 2 metres long for clamping the load, strengthened arm connections on the clamp profiles to allow clamping with the tips of the arms.

  • Excellent price-performance ratio
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Strengthened arm construction with toothed bars
  • Solid wear and tear bars under clamp body and clamp arms optionally
  • Valveblock sideshift serially
  • Combination with KAUP rotary devices possible
  • Customer specified modifications feasible

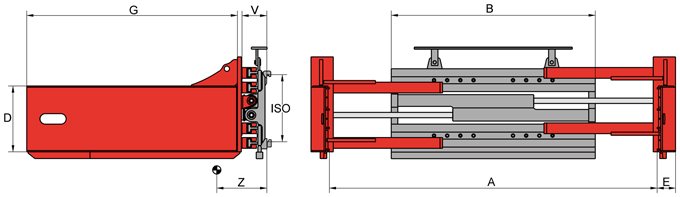

Model Cap. kg LCD mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight app. kg
2T413RC 2.100 500 575-1.875 1.040 440 42 1.000 2 136 277 566
2T413RC 2.100 500 575-1.875 1.040 440 42 1.200 2 136 344 620
2T413RC 2.100 500 575-1.875 1.040 440 42 1.000 3 136 277 566
2T413RC 2.100 500 575-1.875 1.040 440 42 1.200 3 136 344 620
2T413RC 2.100 500 485-1.785 1.130 440 42 1.000 2 136 274 573
2T413RC 2.100 500 485-1.785 1.130 440 42 1.200 2 136 340 628
2T413RC 2.100 500 485-1.785 1.130 440 42 1.000 3 136 274 573
2T413RC 2.100 500 485-1.785 1.130 440 42 1.200 3 136 340 628
2T413RC 2.100 500 595-2.395 1.520 440 42 1.000 2 136 255 634
2T413RC 2.100 500 595-2.395 1.520 440 42 1.200 2 136 316 689
2T413RC 2.100 500 595-2.395 1.520 440 42 1.000 3 136 255 634
2T413RC 2.100 500 595-2.395 1.520 440 42 1.200 3 136 316 689
3T413RC 2.500 500 465-1.765 1.130 500 130 1.400 2 145 379 778
3T413RC 2.500 500 465-1.765 1.130 500 130 1.600 2 145 432 804
3T413RC 2.500 500 465-1.765 1.130 500 130 1.400 3 145 379 778
3T413RC 2.500 500 465-1.765 1.130 500 130 1.600 3 145 432 804
3T413RC 2.500 500 605-2.235 1.330 500 130 1.400 2 145 368 807
3T413RC 2.500 500 605-2.235 1.330 500 130 1.600 2 145 419 843
3T413RC 2.500 500 605-2.235 1.330 500 130 1.400 3 145 368 807
3T413RC 2.500 500 605-2.235 1.330 500 130 1.600 3 145 419 843
4T413RC 3.000 500 565-1.965 1.130 500 130 1.400 3 155 355 907
4T413RC 3.000 500 565-1.965 1.130 500 130 1.600 3 155 402 942
4T413RC 3.000 500 595-2.225 1.330 500 130 1.400 3 155 340 962
4T413RC 3.000 500 595-2.225 1.330 500 130 1.600 3 155 385 998
4,5T413RC 2.200 800 550-1.950 1.200 500 130 1.600 3 181 396 1.013
4,5T413RC 2.200 800 550-1.950 1.200 500 130 2.000 3 181 495 1.083
4,5T413RC 2.200 800 650-2.280 1.330 500 130 1.600 3 181 388 1.040
4,5T413RC 2.200 800 650-2.280 1.330 500 130 2.000 3 181 485 1.110
4,5T413RC 2.200 800 700-2.330 1.460 500 130 1.600 3 181 382 1.060
4,5T413RC 2.200 800 700-2.330 1.460 500 130 2.000 3 181 477 1.130
4,5T413RC 2.200 800 870-2.500 1.550 500 130 1.600 3 181 376 1.080
4,5T413RC 2.200 800 870-2.500 1.550 500 130 2.000 3 181 470 1.151
4,8T413BRC 3.300 800 650-2.280 1.330 500 160 1.600 3 206 374 1.480
4,8T413BRC 3.300 800 650-2.280 1.330 500 160 2.000 3 206 466 1.573
5,5T413BRC 3.300 800 650-2.280 1.330 500 160 1.600 4 206 371 1.499
5,5T413BRC 3.300 800 650-2.280 1.330 500 160 2.000 4 206 460 1.594
6T413BRC 4.000 800 600-2.230 1.550 600 160 1.600 4 211 330 1.602
6T413BRC 4.000 800 600-2.230 1.550 600 160 2.000 4 211 425 1.705
6T413BRC 4.000 800 560-2.460 1.860 600 160 1.600 4 211 357 1.750
6T413BRC 4.000 800 560-2.460 1.860 600 160 2.000 4 211 438 1.916
6T413BRC 4.000 800 730-2.630 1.860 600 160 1.600 4 211 357 1.752
6T413BRC 4.000 800 730-2.630 1.860 600 160 2.000 4 211 438 1.918
6T413BRC 4.000 800 590-2.690 2.030 600 160 1.600 4 211 345 1.818
6T413BRC 4.000 800 590-2.690 2.030 600 160 2.000 4 211 438 1.990
6T413BRC 4.000 800 485-2.825 2.400 600 160 1.600 4 211 357 1.907
6T413BRC 4.000 800 485-2.825 2.400 600 160 2.000 4 211 438 2.080
6,5T413BRC 6.000 800 680-2.310 1.550 600 160 1.600 4 221 366 1.745
6,5T413BRC 6.000 800 640-2.540 1.860 600 160 1.600 4 221 340 1.936
6,5T413BRC 6.000 800 610-2.710 2.030 600 160 1.600 4 221 334 1.963
6,5T413BRC 6.000 800 580-2.980 2.400 600 160 1.600 4 221 323 2.053
8T413BRC 8.000 800 640-2.270 1.550 600 160 1.600 4 258 367 2.064
8T413BRC 8.000 800 640-2.270 1.550 600 160 2.000 4 258 457 2.191
8T413BRC 8.000 800 560-2.660 2.000 600 160 1.600 4 258 348 2.223
8T413BRC 8.000 800 560-2.660 2.000 600 160 2.000 4 258 433 2.350
8T413BRC 8.000 800 685-2.785 2.000 600 160 1.600 4 258 348 2.223
8T413BRC 8.000 800 685-2.785 2.000 600 160 2.000 4 258 433 2.350
8T413BRC 8.000 800 585-2.985 2.200 600 160 1.600 4 258 340 2.301
8T413BRC 8.000 800 585-2.985 2.200 600 160 2.000 4 258 423 2.428
