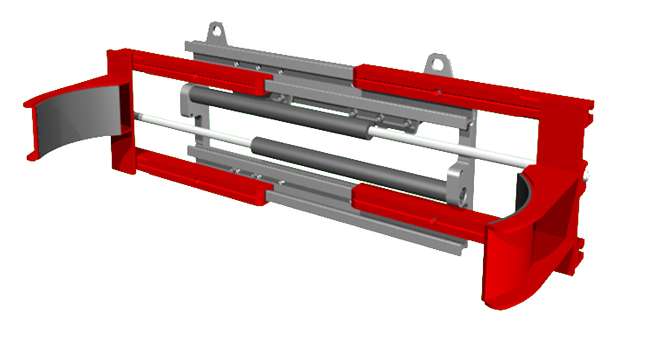

T415-1 Drum Clamp

with independent sideshift - for cylindrical steel drums - 2 hydraulic functions:, This Drum Clamp can transport 1 or 2 drums palletless and safely.


The KAUP Drum Clamp T415-1 can transport a drum or two drums side by side certainly and without palettes. Therefor the clamp arms are serially vulcanised with rubber.

  • Low lost load - good residual capacity
  • Good visibility conditions
  • Stable construction
  • Independent sideshift serially

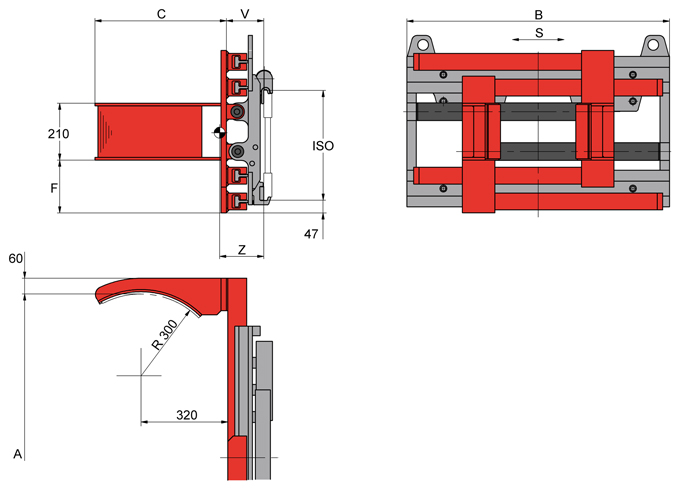

Model Cap. kg LCD mm S mm A mm B mm C mm F mm ISO V mm CofG Z mm Weight kg
1T415-1 1-2 700 320 ±100 420-1.600 970 485 146 2 133 113 196
1,5T415-1 1-2 1.250 320 ±100 440-1.620 970 485 195 2 133 108 228
1,5T415-1 1-2 1.250 320 ±100 440-1.620 970 485 195 3 133 108 228
