T445F Mini Drum Clamp

360° rotation continuous - to transport cylindrical steel drums - arms covered with Remagrip, 2 hydraulic function

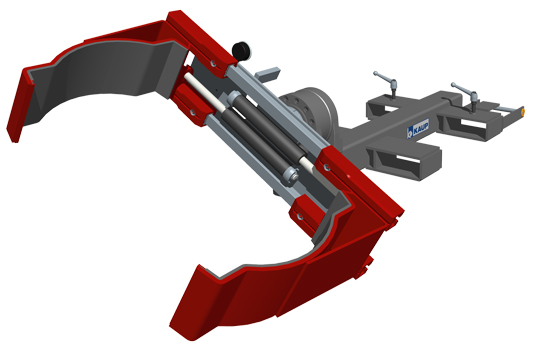

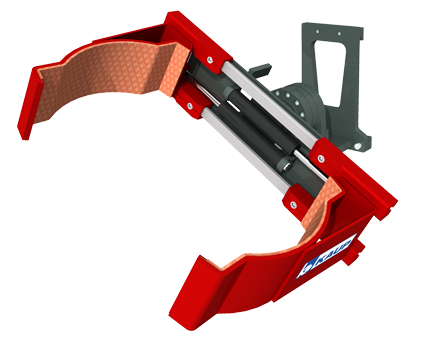

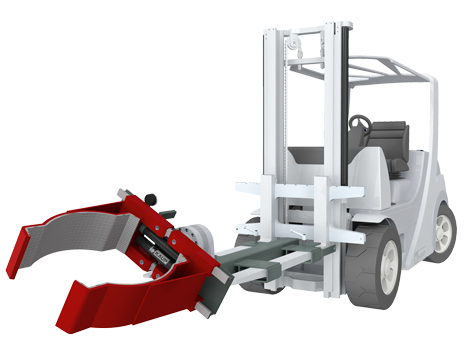

The KAUP Mini Drum Clamp T445F is the right choice when cylindrical drums and/or garbage vessels with a hydraulically rotating attachment should be emptied. The mini drum clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.

  • Simple assembly
  • Good visibility conditions
  • Original forks can be used
  • Clamp arms with rubber covering serially
  • Rotary corner up to 180°

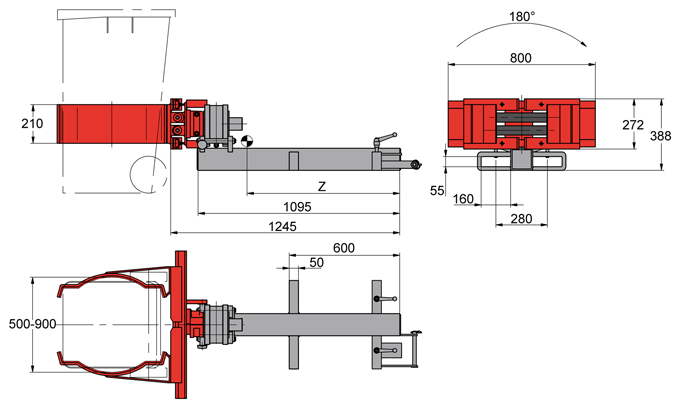

Model Cap. kg LCD mm mm Rotation Md ∆-P = 125 bar Nm CofG Z mm Weight kg
0,3T445F 300 320 500-900 180° 1.625 1.087 218
0,8T445F 700 320 500-900 360° 2.570 1.256 270
