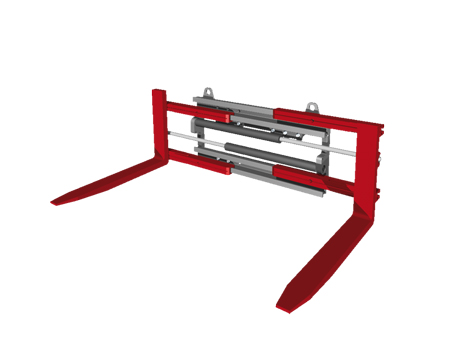

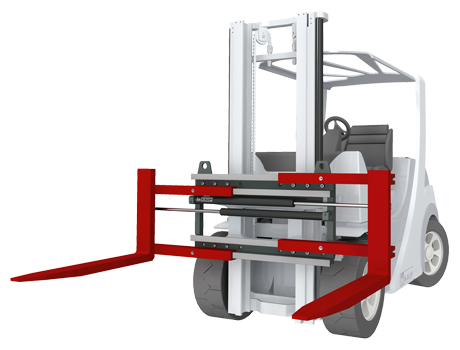

T411 Fork Clamp

with independent sideshift - 2 hydraulic functions - also available with round forks


The Fork Clamp T411 is the base for all clamps. This attachment is particularly suitable for hard use and can be adapted for individual demands. To be used with hook-on fork cross sections for divergent charges or in combination with other attachments.

  • For hard onsets suitable
  • Good visibility conditions
  • Good residual capacity
  • Independent sideshift serially
  • Screw-on forks and round prongs optionally
  • Load backrest optionally
  • Optionally the most different puttable on clamp arms

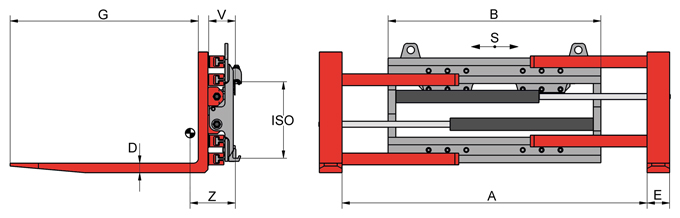

Model Cap. on forks kg Cap. as clamp kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight kg Price €
1T411 1.500 700 500 ±100 340-1.300 750 40 100 1.200 2 133 268 236 On request
1T411 1.500 700 500 ±100 340-1.520 970 40 100 1.200 2 133 251 258 On request
1T411 1.500 700 500 ±100 350-1.700 1.130 40 100 1.200 2 133 244 269 On request
1T411 1.500 700 500 ±100 330-1.730 1.200 40 100 1.200 2 133 241 273 On request
1,5T411 2.300 1.250 500 ±100 320-1.500 970 45 120 1.200 2 133 266 323 On request
1,5T411 2.300 1.250 500 ±100 40-940 970 45 120 1.200 2 133 254 312 On request
1,5T411 2.300 1.250 500 ±100 330-1.680 1.130 45 120 1.200 2 133 253 335 On request
1,5T411 2.300 1.250 500 ±100 90-1.270 1.200 45 120 1.200 2 133 252 336 On request
1,5T411 2.300 1.250 500 ±100 310-1.710 1.200 45 120 1.200 2 133 270 339 On request
1,5T401 2.300 1.250 500 - 260-1.260 850 45 120 1.200 2 126 260 300 On request
2T411 2.800 2.000 500 ±100 280-1.380 970 50 120 1.200 2 143 262 384 On request
2T411 2.800 2.000 500 ±100 320-1.620 1.130 50 120 1.200 2 143 257 396 On request
2T411 2.800 2.000 500 ±100 70-1.120 1.130 50 120 1.200 2 143 259 391 On request
2T411 2.800 2.000 500 ±100 120-1.420 1.330 50 120 1.200 2 143 252 408 On request
2T411 2.800 2.000 500 ±100 320-1.820 1.330 50 120 1.200 2 143 250 412 On request
2T411 2.800 2.000 500 ±100 280-1.380 970 50 120 1.200 3 143 262 384 On request
2T411 2.800 2.000 500 ±100 320-1.620 1.130 50 120 1.200 3 143 257 396 On request
2T411 2.800 2.000 500 ±100 70-1.120 1.130 50 120 1.200 3 143 259 391 On request
2T411 2.800 2.000 500 ±100 120-1.420 1.330 50 120 1.200 3 143 252 408 On request
2T411 2.800 2.000 500 ±100 320-1.820 1.330 50 120 1.200 3 143 250 412 On request
2T401 2.800 2.000 500 - 300-1.300 850 50 120 1.200 2 136 282 339 On request
2T401 2.800 2.000 500 - 300-1.300 850 50 120 1.200 3 136 282 339 On request
3T411 3.600 2.500 500 ±100 260-1.560 1.130 50 150 1.200 3 152 255 510 On request
3T411 3.600 2.500 500 ±100 260-1.760 1.330 50 150 1.200 3 152 249 529 On request
3T411 3.600 2.500 500 ±100 130-1.630 1.460 50 150 1.200 3 152 245 539 On request
3T411 3.600 2.500 500 ±100 260-1.890 1.460 50 150 1.200 3 152 245 541 On request
4T411 4.150 2.900 500 ±100 260-1.560 1.130 50 150 1.200 3 162 245 572 On request
4T411 4.150 2.900 500 ±100 260-1.760 1.330 50 150 1.200 3 162 240 591 On request
4T411 4.150 2.900 500 ±100 130-1.630 1.460 50 150 1.200 3 162 237 603 On request
4T411 4.150 2.900 500 ±100 260-1.890 1.460 50 150 1.200 3 162 236 606 On request
4,5T411 5.000 3.500 500 ±100 230-1.480 1.200 60 150 1.200 3 188 253 689 On request
4,5T411 5.000 3.500 500 ±100 250-1.650 1.330 60 150 1.200 3 188 248 709 On request
4,5T411 5.000 3.500 500 ±100 120-1.520 1.460 60 150 1.200 3 188 245 725 On request
4,5T411 5.000 3.500 500 ±100 220-1.720 1.460 60 150 1.200 3 188 244 728 On request
4,5T411 5.000 3.500 500 ±100 260-1.890 1.550 60 150 1.200 3 188 241 744 On request
4,5T411.1 5.000 3.500 500 ±100 230-1.480 1.200 60 150 1.200 3 178 250 687 On request
4,5T411.1 5.000 3.500 500 ±100 250-1.650 1.330 60 150 1.200 3 178 246 705 On request
4,5T411.1 5.000 3.500 500 ±100 120-1.520 1.460 60 150 1.200 3 178 243 718 On request
4,5T411.1 5.000 3.500 500 ±100 260-1.890 1.550 60 150 1.200 3 178 240 734 On request
4,8T411 5.000 3.200 600 ±100 230-1.480 1.200 70 150 1.200 3 178 274 733 On request
4,8T411 5.000 3.200 600 ±100 250-1.650 1.330 70 150 1.200 3 178 270 752 On request
4,8T411 5.000 3.200 600 ±100 120-1.520 1.460 70 150 1.200 3 178 267 765 On request
4,8T411 5.000 3.200 600 ±100 260-1.890 1.550 70 150 1.200 3 178 263 781 On request
5T411 6.200 3.500 600 ±160 240-1.740 1.460 70 150 1.200 4 176 244 855 On request
5T411 6.200 3.500 600 ±160 280-1.910 1.550 70 150 1.200 4 176 242 868 On request
5T411 6.200 3.500 600 ±160 550-2.450 1.550 70 150 1.200 4 176 234 933 On request
5T411 6.200 3.500 600 ±160 280-2.180 1.820 70 150 1.200 4 176 236 905 On request
6T411B 8.000 4.800 600 ±160 180-1.810 1.550 60 200 1.200 4 259 238 1.410 On request
6T411B 8.000 4.800 600 ±160 140-2.040 1.860 60 200 1.200 4 259 229 1.499 On request
6T411B 8.000 4.800 600 ±160 340-2.440 1.860 60 200 1.200 4 259 229 1.506 On request
8T411B 8.000 6.500 600 VSS 310-2.510 2.200 70 200 1.200 4 309 241 2.045 On request
