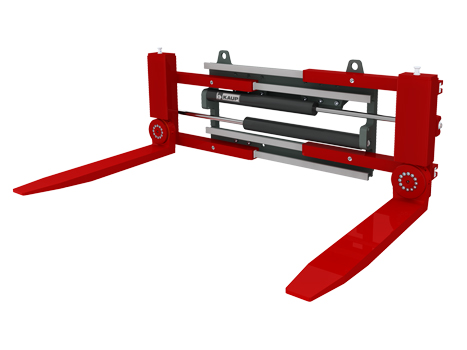

T411D Fork Clamp with Turnable Forks

with independent sideshift - Fork length max. 1.300 mm - 2 hydraulic functions

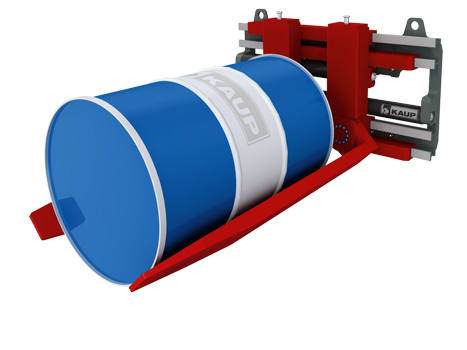

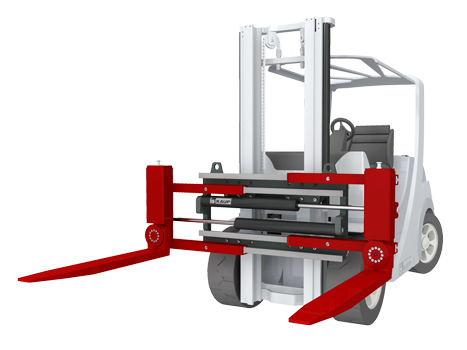

The KAUP Fork Clamp with Turnable Forks T411D is a universally used attachment. The carrying part of the hook-on forks is turnable by ± 90 °. Therefore, the rotary hook-on fork clamp can be used as hook-on forks as well as being used as a clamp for carrying bale, boxes and cardboards. If the carrying part is rotated to 45 °the transport of barrels or other cylindrical bodies is also possible.

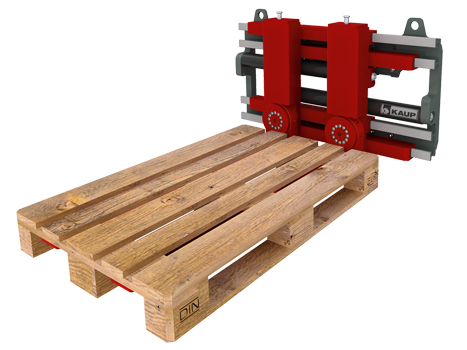

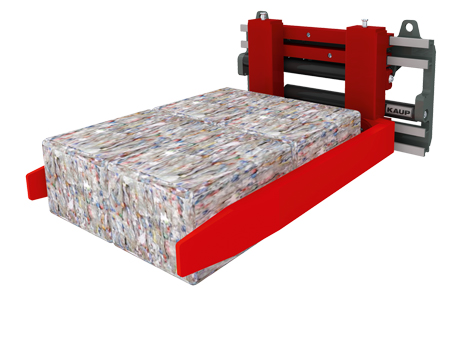

  • Suitably to the Handling of the most different load forms - palettised product, grid boxing, underrun loads (basic position), barrels and cylindrical bodies (45 ° positions), bales, clamps, cardboards etc. (90 ° positions)
  • Very good visibility conditions
  • Independent sideshift serially
  • Load backrest optionally
  • Puttable on clamp arms optionally

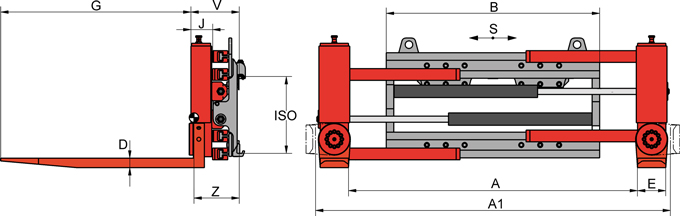

Model Cap. on forks kg Cap. as clamp kg LCD mm S mm A mm B mm D mm E mm G mm A1 mm J mm ISO V mm CofG Z mm Weight kg Price €
1T411D 1.500 700 500 ±100 310-1.490 970 40 100 1.200 580-1.760 110 2 248 245 331 On request
1,5T411D 2.000 1.250 500 ±100 110-1.110 970 40 120 1.200 400-1.400 110 2 248 267 343 On request
1,5T411D 2.000 1.250 500 ±100 290-1.470 970 40 120 1.200 580-1.760 110 2 248 263 353 On request
1,5T411D 2.000 1.250 500 ±100 300-1.650 1.130 40 120 1.200 590-1.940 110 2 248 257 364 On request
1,5T411D 2.000 1.250 500 ±100 280-1.680 1.200 40 120 1.200 570-1.970 110 2 248 254 369 On request
2T411D 2.800 2.000 500 ±100 220-1.420 1.040 50 150 1.200 570-1.770 110 2 258 305 450 On request
2T411D 2.800 2.000 500 ±100 130-1.330 1.130 50 150 1.200 480-1.680 110 2 258 302 456 On request
2T411D 2.800 2.000 500 ±100 230-1.530 1.130 50 150 1.200 580-1.880 110 2 258 301 458 On request
2T411D 2.800 2.000 500 ±100 230-1.730 1.330 50 150 1.200 580-2.080 110 2 258 294 473 On request
2T411D 2.800 2.000 500 ±100 220-1.420 1.040 50 150 1.200 570-1.770 110 3 258 305 450 On request
2T411D 2.800 2.000 500 ±100 130-1.330 1.130 50 150 1.200 480-1.680 110 3 258 302 456 On request
2T411D 2.800 2.000 500 ±100 230-1.530 1.130 50 150 1.200 580-1.880 110 3 258 301 458 On request
2T411D 2.800 2.000 500 ±100 230-1.730 1.330 50 150 1.200 580-2.080 110 3 258 294 473 On request
3T411D 3.600 2.500 500 ±100 225-1.525 1.130 60 150 1.200 605-1.905 110 3 267 287 573 On request
3T411D 3.600 2.500 500 ±100 225-1.855 1.460 60 150 1.200 605-2.235 110 3 267 276 604 On request
