T156 Sideshifter with Fork Adjustment

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

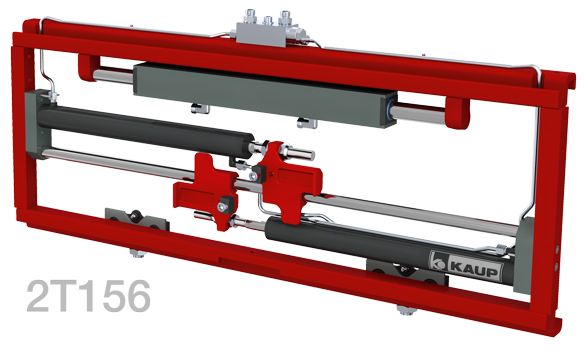

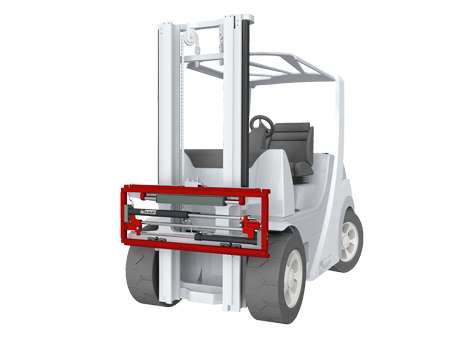

The Sideshifter with Fork Adjustment T156 is the new starter series of KAUP Fork Positioners. This attachment with excellent price-performance ratio is designed with hydraulic parallel movement with two cylinders and is based on the P4-Sideshifter.

  • Excellent price-performance ratio
  • For light duty operation
  • Hydraulic parallel movement
  • Independent sideshift
  • Original forklift trucks useable
  • Optional: without sideshift

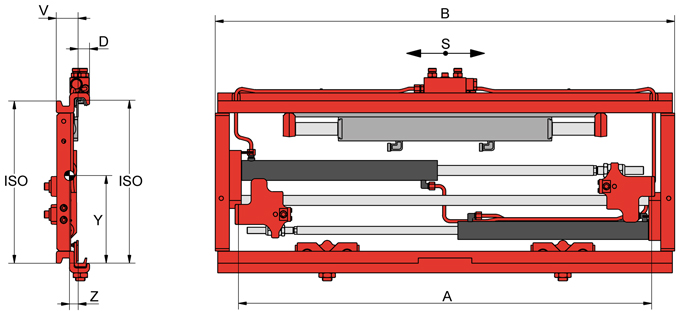

Model Cap. kg LCD mm S mm A mm B mm D mm mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T156 2.500 500 ±80 290-795 890 28 70-125 2 55 22 225 70
2T156 2.500 500 ±80 320-825 920 28 70-125 2 55 22 225 71
2T156 2.500 500 ±100 290-925 1.020 28 70-125 2 55 22 222 75
2T156 2.500 500 ±100 310-945 1.040 28 70-125 2 55 22 222 77
2T156 2.500 500 ±100 295-1055 1.150 28 70-125 2 55 22 220 80
2T156 2.500 500 ±100 335-1095 1.190 28 70-125 2 55 22 220 82
4.5T156 5.000 500 ±100 355-1055 1.150 40 100-150 3 82 39 265 136
4.5T156 5.000 500 ±100 355-1255 1.350 40 100-150 3 82 40 265 152
