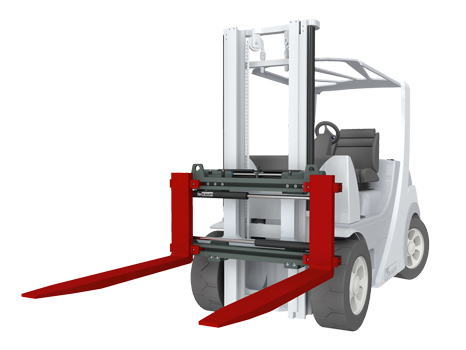

T466Z Fork Positioner

with independent sideshift - 2 hydraulic functions


The KAUP hook-on Fork Positioner T466Z(A) has been specially designed with optimised visibility and residual capacity. This attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466Z(A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

  • For moderately heavy operation - complete program with capacities of up to 10 tons
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Independent sideshift serially
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage

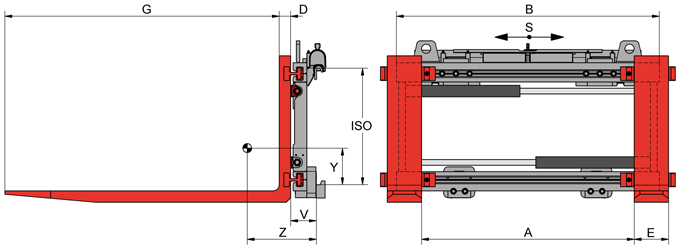

Model Cap. kg LCD mm A mm B mm D mm E mm G mm S mm ISO V mm CofG Z mm CofG Y mm Weight kg Price €
1,5T466BZ 1.600 500 170-710 880 40 100 1.200 ±100 2 113 255 150 231 On request
1,5T466BZ 1.600 500 170-810 980 40 100 1.200 ±100 2 113 251 151 237 On request
1,5T466BZ 1.600 500 170-870 1.040 40 100 1.200 ±100 2 113 248 152 240 On request
1,5T466BZ 1.600 500 170-970 1.150 40 100 1.200 ±100 2 113 243 153 246 On request
2T466BZ 2.500 500 130-670 880 45 120 1.200 ±100 2 113 295 134 267 On request
2T466BZ 2.500 500 130-770 980 45 120 1.200 ±100 2 113 292 135 271 On request
2T466BZ 2.500 500 130-830 1.040 45 120 1.200 ±100 2 113 287 136 274 On request
2T466BZ 2.500 500 130-930 1.150 45 120 1.200 ±100 2 113 282 138 280 On request
2T466BZ 2.500 500 130-1.130 1.350 45 120 1.200 ±100 2 113 274 140 292 On request
2T466BZ 2.500 500 130-1.230 1.450 45 120 1.200 ±100 2 123 265 143 323 On request
2T466BZ 2.500 500 130-1.330 1.550 45 120 1.200 ±100 2 123 262 145 331 On request
2T466BZ 2.500 500 130-1.430 1.650 45 120 1.200 ±100 2 123 257 149 339 On request
2,5T466BZ 2.500 600 130-830 1.040 50 120 1.200 ±100 2 128 279 136 317 On request
2,5T466BZ 2.500 600 130-930 1.150 50 120 1.200 ±100 2 128 274 138 325 On request
3,5T466BZ 3.500 500 130-830 1.040 50 150 1.200 ±100 3 123 293 166 372 On request
3,5T466BZ 3.500 500 130-930 1.150 50 150 1.200 ±100 3 123 288 168 380 On request
3,5T466BZ 3.500 500 130-1.030 1.250 50 150 1.200 ±100 3 123 284 170 388 On request
3,5T466BZ 3.500 500 130-1.130 1.350 50 150 1.200 ±100 3 123 280 171 395 On request
3,5T466BZ 3.500 500 130-1.230 1.450 50 150 1.200 ±100 3 123 276 173 402 On request
3,5T466BZ 3.500 500 130-1.330 1.550 50 150 1.200 ±100 3 123 272 174 409 On request
3,5T466BZ 3.500 500 130-1.430 1.650 50 150 1.200 ±100 3 123 268 176 416 On request
4,5T466BZ 5.000 500 130-930 1.150 60 150 1.200 ±100 3 126 285 170 450 On request
4,5T466BZ 5.000 500 130-1.130 1.350 60 150 1.200 ±100 3 126 275 173 468 On request
4,5T466BZ 5.000 500 130-1.230 1.460 60 150 1.200 ±100 3 126 270 175 479 On request
4,5T466BZ 5.000 500 130-1.310 1.550 60 150 1.200 ±100 3 126 267 176 488 On request
4,5T466BZ 5.000 500 130-1.430 1.650 60 150 1.200 ±100 3 136 248 185 523 On request
4,5T466BZ 5.000 500 130-1.530 1.750 60 150 1.200 ±100 3 136 243 187 536 On request
4,5T466BZ 5.000 500 130-1.630 1.850 60 150 1.200 ±100 3 136 238 190 549 On request
4,8T466BZ 5.000 600 130-930 1.150 70 150 1.200 ±100 3 126 311 162 491 On request
4,8T466BZ 5.000 600 130-1.130 1.350 70 150 1.200 ±100 3 126 302 165 510 On request
4,8T466BZ 5.000 600 130-1.230 1.460 70 150 1.200 ±100 3 126 298 167 521 On request
4,8T466BZ 5.000 600 130-1.310 1.550 70 150 1.200 ±100 3 126 294 169 530 On request
4,8T466BZ 5.000 600 130-1.430 1.650 70 150 1.200 ±100 3 136 275 177 574 On request
4,8T466BZ 5.000 600 130-1.530 1.750 70 150 1.200 ±100 3 136 280 179 587 On request
4,8T466BZ 5.000 600 130-1.630 1.850 70 150 1.200 ±100 3 136 285 182 600 On request
6T466Z 6.000 600 200-1.110 1.350 70 150 1.200 ±100 4 151 280 225 620 On request
6T466Z 6.000 600 200-1.200 1.460 70 150 1.200 ±100 4 151 277 226 630 On request
6T466Z 6.000 600 200-1.400 1.650 70 150 1.200 ±160 4 151 269 232 655 On request
6T466Z 6.000 600 200-1.600 1.860 70 150 1.200 ±160 4 151 262 235 682 On request
8T466Z 8.000 600 200-1.600 1.860 70 150 1.200 ±160 4 151 262 235 682 On request
8T466Z 8.000 600 200-1.800 2.060 70 150 1.200 ±160 4 151 256 238 704 On request
8T466Z 8.000 600 200-2.000 2.260 70 150 1.200 ±160 4 151 250 240 725 On request
8T466Z 8.000 600 210-2.060 2.400 70 150 1.200 ±160 4 151 247 242 741 On request
10T466Z 8.000 900 160-1.790 2.060 70 200 1.200 ±160 4 205 276 245 1.025 On request
10T466Z 8.000 900 160-1.960 2.260 70 200 1.200 ±160 4 205 272 247 1.050 On request
10T466Z 8.000 900 160-2.060 2.400 70 200 1.200 ±160 4 205 269 248 1.070 On request
10T466Z 8.000 1.100 160-1.790 2.060 80 200 1.200 ±160 4 205 286 240 1.075 On request
10T466Z 8.000 1.100 160-1.960 2.260 80 200 1.200 ±160 4 205 283 242 1.100 On request
10T466Z 8.000 1.100 160-2.060 2.400 80 200 1.200 ±160 4 205 280 243 1.120 On request
