T180KM Foldable Forks

for mounting on ISO fork carriage - mechanically foldable


The KAUP Foldable forks T180KM are used where shortage of space (for example lift use) or internal transport makes it sometimes necessary to fold on the forks. For it the forks are hung up directly in the fork carriage and are opened mechanically.

Moreover, the foldable forks can also be combined with other attachments of KAUP, for example bale clamps.

  • Robust construction
  • An easy assembly
  • Very good visibility conditions

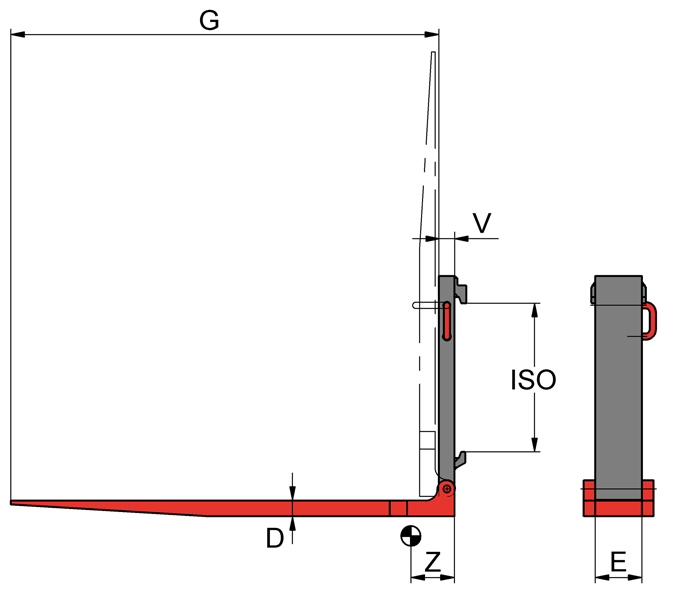

Model Cap. per fork pair kg LCD mm E mm D mm G mm ISO V mm CofG Z mm Weight per piece kg
1T180KM 1.500 500 120 40 1.200 2 60 340 75
2T180KM 2.500 500 140 50 1.200 2 70 358 109
3T180KM 3.500 500 150 50 1.200 3 70 338 125
4T180KM 4.000 500 150 60 1.200 3 80 330 141
4T180KM 4.000 500 150 60 1.200 4 80 320 152
5T180KM 5.000 500 200 60 1.200 4 80 420 167
