T180LA Cross Girder

slip-on-fork version


The KAUP Cross Girder T180LA is put on directly on the available forks. It is used to transport especially long loads like pipes or metal sheets solidly.

  • Robust construction
  • An easy assembly
  • Original forks of the stacker usable
  • Optionally: ISO suspension instead of fork shoes

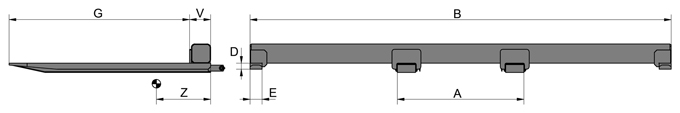

Model Cap. kg LCD mm A mm B mm E mm D mm G mm V mm CofG Z mm Weight kg
1,5T180LA 1.600 600 1.000 4.000 100 40 1.200 155 315 290
2T180LA 2.500 600 1.000 4.000 120 45 1.200 155 335 320
3,5T180LA 3.500 600 1.000 4.000 120 45 1.200 175 345 360
4,5T180LA 4.500 600 1.000 4.000 120 50 1.200 175 350 370
8T180LA 8.000 600 1.500 4.000 150 60 1.200 175 375 425
10T180LA 8.000 1.100 1.500 4.000 150 70 1.800 175 635 590
