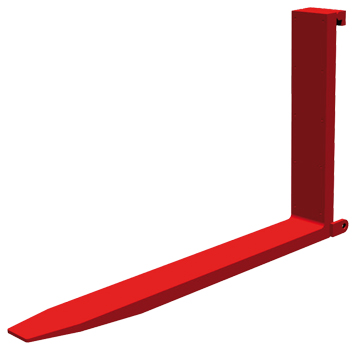

T180TW Hook on Forks

with quick release system 'Terminal West'


The quickly changeable hook-on forks T180TW of KAUP possesses a terminal west suspension. With these hook-on forks palettised load can be taken up.

  • An easy assembly
  • Numerous different load-carrying capacity and hook-on fork lengths in the programme
  • Robust implementation

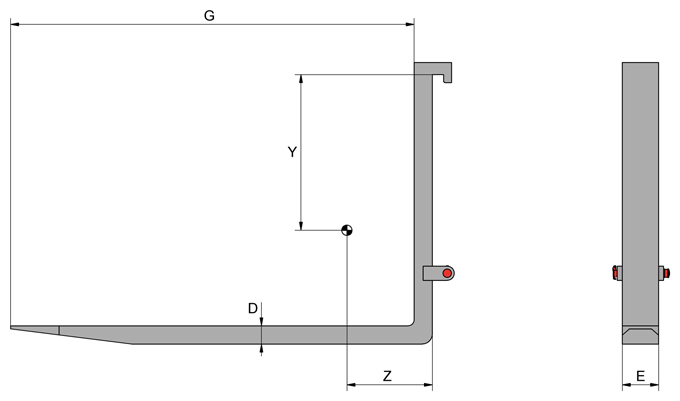

Model Cap. per fork pair kg LCD mm E mm D mm G mm CofG Z mm CofG Y mm Weight per piece kg Add-on weight for 100mm length kg
12T180TW 12.000 600 200 80 1.200 250 690 270 12,6
12T180TW 12.000 600 200 80 1.400 320 715 295 12,6
12T180TW 12.000 600 200 80 1.600 395 735 320 12,6
12T180TW 12.000 600 200 80 1.800 470 755 345 12,6
12T180TW 12.000 600 200 80 2.000 550 770 370 12,6
12T180TW 12.000 600 200 80 2.200 640 785 395 12,6
12T180TW 12.000 600 200 80 2.400 725 840 420 12,6
16T180TW 16.000 600 200 90 1.200 235 730 305 14,1
16T180TW 16.000 600 200 90 1.400 305 760 333 14,1
16T180TW 16.000 600 200 90 1.600 375 785 399 14,1
16T180TW 16.000 600 200 90 1.800 450 805 389 14,1
16T180TW 16.000 600 200 90 2.000 530 820 417 14,1
16T180TW 16.000 600 200 90 2.200 615 840 445 14,1
16T180TW 16.000 600 200 90 2.400 700 855 473 14,1
24T180TW 24.000 600 250 90 1.200 240 735 370 17,7
24T180TW 24.000 600 250 90 1.400 305 760 405 17,7
24T180TW 24.000 600 250 90 1.600 380 785 440 17,7
24T180TW 24.000 600 250 90 1.800 475 805 475 17,7
24T180TW 24.000 600 250 90 2.000 540 825 510 17,7
24T180TW 24.000 600 250 90 2.200 620 840 545 17,7
24T180TW 24.000 600 250 90 2.400 705 855 580 17,7
32T180TW 32.000 600 250 100 1.200 235 725 395 19,6
32T180TW 32.000 600 250 100 1.400 300 760 435 19,6
32T180TW 32.000 600 250 100 1.600 370 785 475 19,6
32T180TW 32.000 600 250 100 1.800 445 805 515 19,6
32T180TW 32.000 600 250 100 2.000 525 825 555 19,6
32T180TW 32.000 600 250 100 2.200 610 840 595 19,6
32T180TW 32.000 600 250 100 2.400 695 855 635 19,6
