T181G Fork Extensions

closed version - for KAUP attachments


With the closed KAUP Fork Extensions T181G normal hook-on fork prongs can be extended. This solution is the right choice if the available hook-on forks should be extended sometimes and not infinitely. For it the available hook-on forks draw in the hook-on fork shoe.

  • Robust construction
  • An easy assembly
  • Original forks of the stacker usable

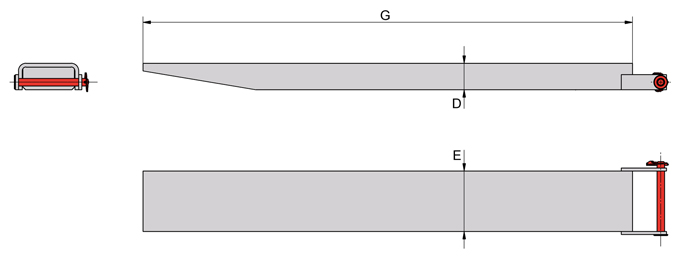

Model mm E mm D mm G mm Weight per piece kg
1T181G 100x40 130 57 1.200 19
1T181G 100x40 130 57 1.400 22
1T181G 100x40 130 57 1.600 26
1T181G 100x40 130 57 1.800 30
1T181G 100x40 130 57 2.000 33
1,5T181G 120x45 150 62 1.200 22
1,5T181G 120x45 150 62 1.400 26
1,5T181G 120x45 150 62 1.600 30
1,5T181G 120x45 150 62 1.800 34
1,5T181G 120x45 150 62 2.000 38
2T181G 120x50 150 67 1.200 22
2T181G 120x50 150 67 1.400 27
2T181G 120x50 150 67 1.600 31
2T181G 120x50 150 67 1.800 35
2T181G 120x50 150 67 2.000 40
2T181G 120x50 150 67 2.200 44
2T181G 120x50 150 67 2.400 48
4T181G 150x50 180 67 1.200 25
4T181G 150x50 180 67 1.400 29
4T181G 150x50 180 67 1.600 34
4T181G 150x50 180 67 1.800 39
4T181G 150x50 180 67 2.000 44
4T181G 150x50 180 67 2.200 49
4T181G 150x50 180 67 2.400 54
4,5T181G 150x60 190 81 1.200 38
4,5T181G 150x60 190 81 1.400 45
4,5T181G 150x60 190 81 1.600 53
4,5T181G 150x60 190 81 1.800 60
4,5T181G 150x60 190 81 2.000 67
4,5T181G 150x60 190 81 2.200 75
4,5T181G 150x60 190 81 2.400 82
6T181G 150x70 195 91 1.200 41
6T181G 150x70 195 91 1.400 49
6T181G 150x70 195 91 1.600 57
6T181G 150x70 195 91 1.800 65
6T181G 150x70 195 91 2.000 73
6T181G 150x70 195 91 2.200 81
6T181G 150x70 195 91 2.400 89
8T181G 200x60 240 81 1.200 44
8T181G 200x60 240 81 1.400 52
8T181G 200x60 240 81 1.600 61
8T181G 200x60 240 81 1.800 70
8T181G 200x60 240 81 2.000 78
8T181G 200x60 240 81 2.200 87
8T181G 200x60 240 81 2.400 96
10T181G 200x70 245 91 1.200 47
10T181G 200x70 245 91 1.400 56
10T181G 200x70 245 91 1.600 65
10T181G 200x70 245 91 1.800 75
10T181G 200x70 245 91 2.000 84
10T181G 200x70 245 91 2.200 93
10T181G 200x70 245 91 2.400 102
