T144S Push-Pull

with independent sideshift - 2 hydraulic functions

Request Pricing

Mounted directly on to the fork carriage the KAUP Push-Pull T144S is the right choice when slip-sheets are regularly used as transport mode. Serially fitted sideshift ensures simple and exact positioning of the attachment.

Like all other KAUP Push-Pulls, this range also has a large surface carrying plate for the transportation of palletless loads.

  • Solid construction
  • Good visibility conditions through the attachment
  • Good residual capacity
  • Self supporting scissor system
  • Sideshift serially

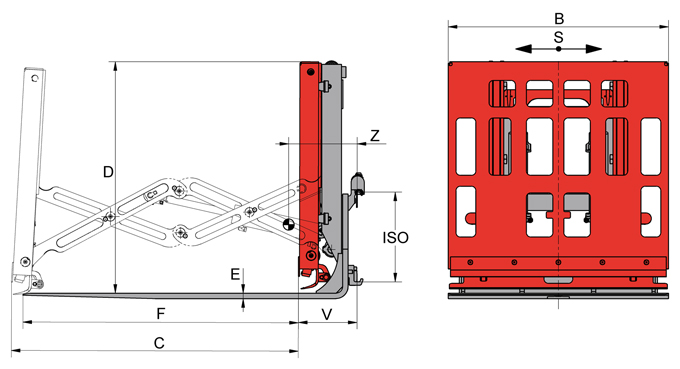

Model Cap. kg LCD mm B mm C mm D mm E mm F mm S mm ISO V mm CofG Z mm Weight kg
1T144S 1.000 600 1.000 1.300 1.035 20 1.250 ±100 2 257 340 545
2T144S 1.700 600 1.000 1.300 1.035 25 1.250 ±100 2 262 360 600
2T144S 1.700 600 1.000 1.300 1.035 25 1.250 ±100 3 262 360 600
3T144S 2.400 600 1.000 1.300 1.035 30 1.250 ±100 3 267 375 665
