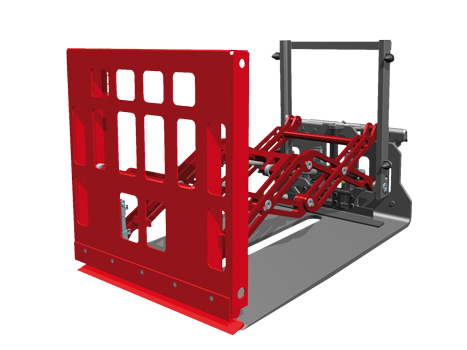

T146S Push-Pull with Sideshift and Sheet Saver

2 hydraulic function - and built-in solenoid valve with accessory kit


Mounted directly on to the fork carriage the KAUP Push-Pull with sideshift and sheet saver T146S is the right choice when slip-sheets are regularly used as transport mode. In order to separate the complete load from the slip-sheet during pushing, the attachment is fitted with a pallet retainer. It grips the slip-sheet firmly while the load is pushed off so that the slip-sheet can be used several times. Serially fitted sideshift ensures simple and exact positioning of the attachment.

Like all other KAUP Push-Pulls, this range also has a large surface carrying plate for the transportation of palletless loads.

  • Solid construction
  • Good visibility conditions through the attachment
  • Good residual capacity
  • Self supporting scissor system
  • Sideshift serially

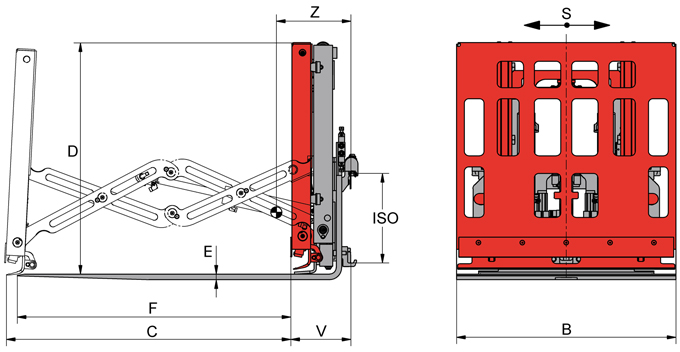

Model Cap. kg LCD mm B mm C mm D mm E mm F mm S mm ISO V mm CofG Z mm Weight kg
1T146S 1.000 600 1.000 1.300 1.035 20 1.250 ±100 2 268 320 585
2T146S 1.700 600 1.000 1.300 1.035 25 1.250 ±100 2 273 335 645
2T146S 1.700 600 1.000 1.300 1.035 25 1.250 ±100 3 273 335 645
3T146S 2.400 600 1.000 1.300 1.035 30 1.250 ±100 3 278 345 710
