T458C-2 Rotating Roll Clamp

360° rotation continuous - short arm fixed - split contact pads on long pivoting arm - 2 hydraulic functions


With the view-optimised designed KAUP Rotating Roll Clamp T458C-2 can move all kinds of rolls. This makes this attachment invaluable when the handling different roll types.



  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally

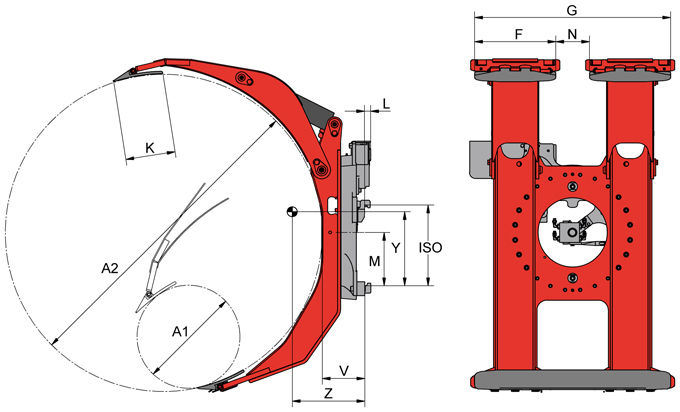

Model Cap. kg LCD mm A1-A2 mm F mm G mm K mm L mm M mm N mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
2T458C-2 2.200 675 480-1.350 415 1.000 250 32 269 170 7.700 9,7 2 230 315 560 On request
2T458C-2 2.000 800 530-1.600 415 1.000 250 32 269 170 7.700 9,7 2 213 355 615 On request
2T458C-2 2.200 675 480-1.350 415 1.000 250 32 269 170 7.700 9,7 3 230 315 560 On request
2T458C-2 2.000 800 530-1.600 415 1.000 250 32 269 170 7.700 9,7 3 213 355 615 On request
3T458C-2 2.800 725 350-1.450 415 1.000 250 40 338 170 8.950 11,3 3 252 352 715 On request
3T458C-2 2.800 800 530-1.600 415 1.000 250 40 338 170 8.950 11,3 3 255 347 720 On request
4T458C-2 3.600 725 475-1.450 420 1.000 300 36 381 160 11.815 13,8 3 233 342 950 On request
4T458C-2 3.500 800 530-1.600 420 1.000 300 36 381 160 11.815 13,8 3 233 345 955 On request
4T458C-2 3.600 725 475-1.450 420 1.000 300 36 516 160 11.815 13,8 4 233 342 950 On request
4T458C-2 3.500 800 530-1.600 420 1.000 300 36 516 160 11.815 13,8 4 233 345 955 On request
