T360 Ladle Tipper

with independent sideshift - tilt angle a = 100° to the right side in driving direction - 2 hydraulic functions

Request Pricing

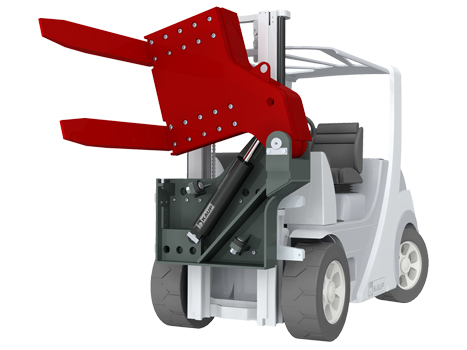

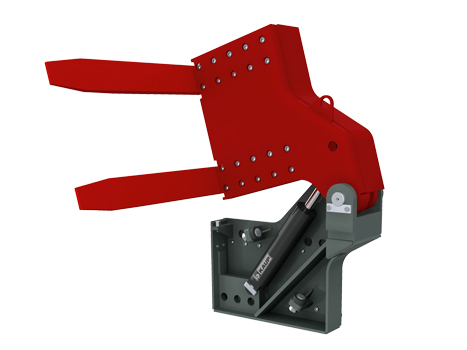

The KAUP Ladle Tipper T360 lifts and transports. It tips either partially or completely. The construction of this attachment permits exact and selective emptying.

  • Tilting corner α 100° to the right - to the left optionally
  • Independent sideshift serially
  • Terminal west / Pin-Type suspension on inquiry
  • Fork pockets optionally

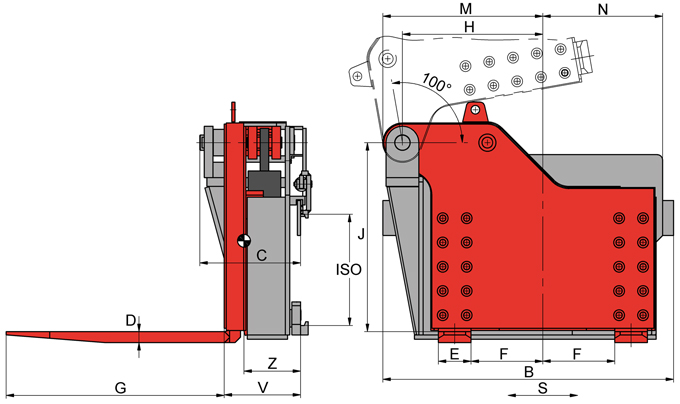

Model Cap. kg LCD mm S mm B mm D mm E mm G mm F mm C mm H mm J mm M mm N mm ISO V mm CofG Z mm Weight kg
1T360 800 500 ±100 820 40 100 1.000 150 297 320 465 150 365 2 250 220 295
2T360 1.500 500 ±100 1.040 50 150 1.000 210 390 545 760 635 400 2 314 263 675
3T360 2.500 500 ±160 1.285 50 150 1.000 330 460 645 900 735 550 3 356 239 1.085
5T360 4.000 600 ±200 1.890 60 160 1.000 175 630 880 890 990 525 4 460 282 1.430
7T360 6.000 600 ±200 1.890 70 200 1.000 195 630 880 890 990 525 4 470 315 1.780
10T360 7.500 600 ±200 1.775 80 200 1.000 480 670 910 1.035 1.045 730 4 565 385 2.600
12T360 9.000 700 ±275 1.975 90 200 1.400 350 748 895 950 1.015 870 - 620 415 3.300
