T013 Fork Carriage

To enlarge the width of the original fork carriage or as false carriage for fork drop-off

Request Pricing

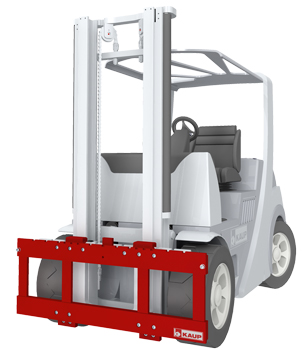

The existing fork carriage of the forklift truck can be extended with a KAUP Fork Carriage type T013. It can also be used for quick change between attachments and/or forks.

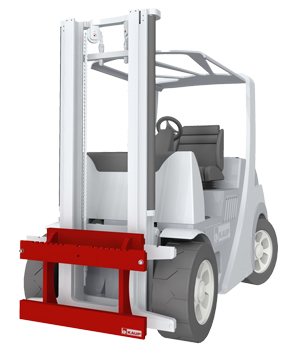

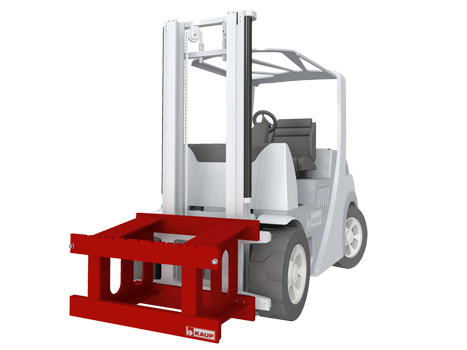

Upon request KAUP Fork Carriages can be supplied to increase the lost load centre and as adapter fork carriage between the forklift truck and other attachments.

  • Solid construction for heavy duty operation
  • Best visibility

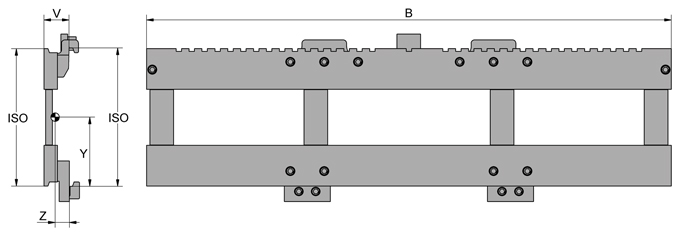

Model Cap. kg LCD mm B mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T013 2.500 600 920 2 65 38 206 68
2T013 2.500 600 980 2 65 39 206 70
2T013 2.500 600 1.020 2 65 39 206 72
2T013 2.500 600 1.040 2 65 39 206 73
2T013 2.500 600 1.150 2 65 41 205 93
2T013 2.500 600 1.600 2 75 49 203 143
3T013 3.000 500 1.020 3 75 46 256 101
3T013 3.000 500 1.070 3 75 46 256 105
3T013 3.000 500 1.100 3 75 46 256 107
3T013 3.000 500 1.150 3 75 47 256 110
3T013 3.000 500 1.300 3 75 48 255 127
3T013 3.000 500 1.600 3 85 55 254 203
4,8T013 5.000 600 1.150 3 75 42 278 128
4,8T013 5.000 600 1.200 3 75 42 277 132
4,8T013 5.000 600 1.300 3 75 43 275 145
4,8T013 5.000 600 1.310 3 75 43 275 145
4,8T013 5.000 600 1.350 3 75 44 274 148
4,8T013 5.000 600 1.410 3 75 44 274 152
4,8T013 5.000 600 1.600 3 85 51 267 220
4,8T013 5.000 600 1.800 3 85 52 266 237
4,8T013 5.000 600 2.000 3 85 53 265 255
8T013 8.000 600 1.400 4 90 51 352 246
8T013 8.000 600 1.800 4 100 60 345 348
8T013 8.000 600 2.180 4 100 61 342 397
8T013 8.000 600 2.260 4 110 67 338 466
