T412V-3 Block Clamp

with independent sideshift - with mechano-hydraulic equilibration plates with Vulcollan coating - 2 hydraulic functions

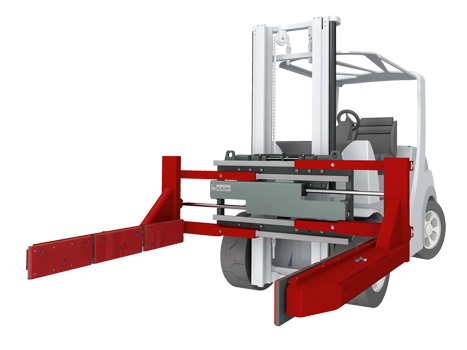

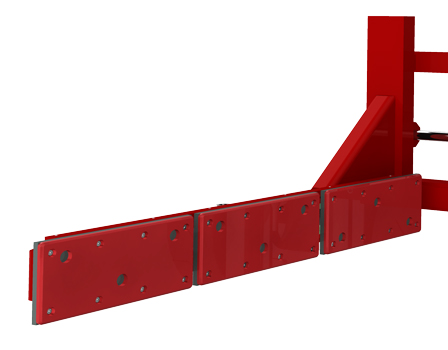

KAUP Block Clamps T412V-3 are fitted with clamping arms with especially large mechanical equilibration plates with Vulcollan coating. This attachment is particularly suited for handling large blocks or packets of blocks with plane surfaces and high dimensional stability.

  • Mechanical equalisation
  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Load Backrest optionally

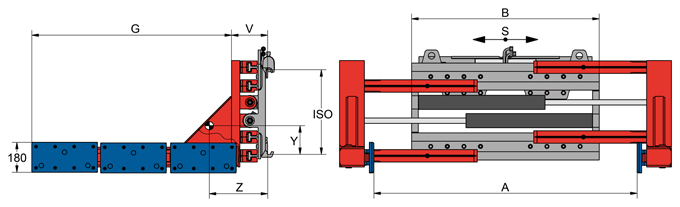

Model Cap. kg LCD mm S mm A mm B mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T412V-3 2.000 500 ±100 275-1.575 1.130 1.260 2 143 365 160 560
2T412V-3 2.000 500 ±100 275-1.575 1.130 1.260 3 143 365 160 560
3T412V-3 2.500 500 ±100 295-1.595 1.130 1.260 3 152 338 176 630
