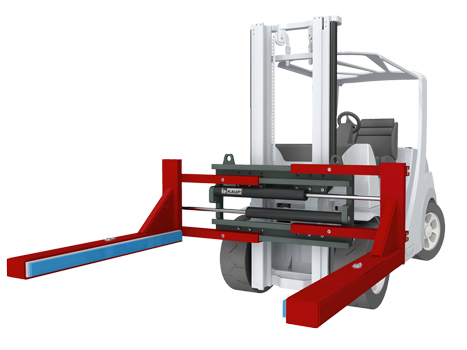

T412V Block Clamp

with independent sideshift - with polyurethane lining and parallel compensation - 2 hydraulic functions


KAUP Block Clamps T412V are best suited to pick up packets of upright format blocks with plane surfaces such as hollow, lime sand and concrete blocks as well as curb stones with high dimensional stability. The arms have a central swinging support to uniformly distribute the pressure and have flexible Vulcollan bars to compensate variations in dimensions of the load.

  • Low lost load centre - excellent residual capacity
  • Very good visibility conditions
  • Independent sideshift serially
  • Load Backrest optionally

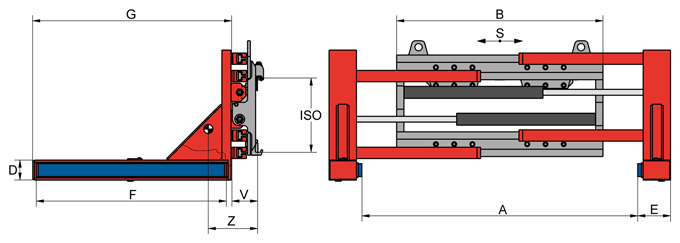

Model Cap. kg LCD mm S mm A mm B mm D mm E mm F mm G mm ISO V mm CofG Z mm Weight kg
1,5T412V 1.250 500 ±100 220-1.400 970 110 180 1.200 1.265 2 133 335 420
2T412V 2.000 500 ±100 270-1.570 1.130 110 180 1.200 1.265 2 143 314 475
2T412V 2.000 500 ±100 270-1.570 1.130 110 180 1.200 1.265 3 143 314 475
3T412V 2.500 500 ±100 270-1.570 1.130 110 180 1.200 1.265 3 152 289 546
3T412V 2.500 500 ±100 270-1.900 1.460 110 180 1.200 1.265 3 152 277 577
4,5T412V 3.200 600 ±100 290-1.790 1.330 110 180 1.200 1.265 3 188 266 702
4,5T412V 3.200 600 ±100 290-1.920 1.460 110 180 1.200 1.265 3 188 262 722
5T412V 3.500 600 ±160 230-1.860 1.550 110 180 1.200 1.265 4 176 219 825
