T183 Crane Jib

Request Pricing

Different versions of this range of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible. The manually swivelling crane column (180° to the right and left) further extends the application possibilities of this attachment. Depending on the version chosen, the crane hook can be either adjusted mechanically (T183), the telescopic boom extended mechanically (T183TM) or hydraulically (T183TH).

  • Solid construction
  • Good visibility conditions
  • Simple assembly
  • Original forklift truck forks can be used
  • Combination with other attachments possible

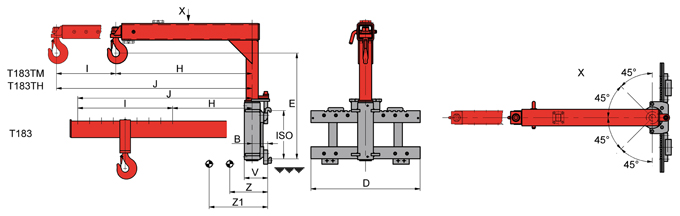

Model Cap. kg LCD mm B mm D mm H-J mm I mm E mm ISO V mm CofG Z mm CofG Z1 mm Weight kg Price €
1T183 1.500 500 125 920 500-1.200 7x100 945 2 186 271 -- 201 On request
2T183 2.500 500 132 920 500-1.200 7x100 915 2 198 320 -- 230 On request
2T183 2.500 500 142 920 500-1.200 7x100 1.015 3 208 296 -- 259 On request
3T183 4.000 500 155 1.150 500-1.200 7x100 1.155 3 234 258 -- 356 On request
5T183 6.000 600 187 1.220 600-1.200 4x150 950 4 284 270 -- 553 On request
2T183TM 1.470 1.200 132 920 1.150-1.950 8x100 1.065 2 198 314 -- 251 On request
2T183TM 1.470 1.200 142 920 1.150-1.950 8x100 1.165 3 208 294 407 279 On request
3T183TM 2.350 1.200 155 1.150 1.190-1.990 8x100 1.160 3 234 295 402 404 On request
5T183TM 3.650 1.350 187 1.220 1.350-2.150 8x100 970 4 284 346 471 636 On request
2T183TH 1.410 1.250 132 920 1.250-2.050 - 1.065 2 198 360 535 272 On request
2T183TH 1.410 1.250 142 920 1.250-2.050 - 1.165 3 208 338 470 301 On request
3T183TH 2.480 1.135 155 1.150 1.135-1.945 - 1.170 3 234 327 417 427 On request
5T183TH 3.880 1.270 187 1.220 1.270-2.080 - 970 4 284 368 483 668 On request
