T183H Crane Jib

Request Pricing

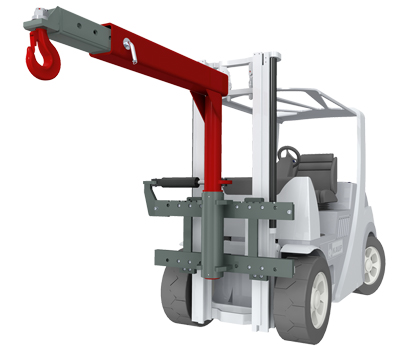

Different versions of this range of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible. The hydraulically swivelling crane column (90° to the right and left) further extends the application possibilities of this attachment. Depending on the version chosen, the crane hook can be either adjusted mechanically (T183H), the telescopic boom extended mechanically (T183HTM) or hydraulically (T183HTH).

  • Solid construction
  • Good visibility conditions
  • Simple assembly
  • Original forklift truck forks can be used
  • Combination with other attachments possible

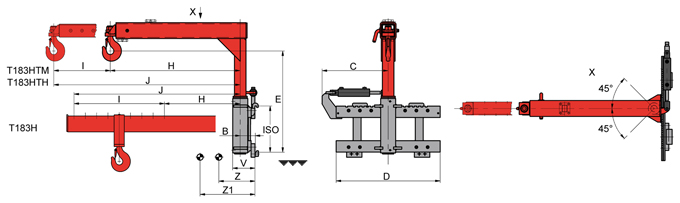

Model Cap. kg LCD mm B mm C mm D mm H-J mm I mm E mm ISO V mm CofG Z mm CofG Z1 mm Weight kg Price €
1T183H 1.500 500 125 585 920 500-1.200 7x100 945 2 186 267 -- 203 On request
2T183H 2.500 500 132 585 920 500-1.200 7x100 915 2 198 315 -- 232 On request
2T183H 2.500 500 142 585 920 500-1.200 7x100 1.015 3 208 293 -- 260 On request
3T183H 4.000 500 155 720 1.150 500-1.200 7x100 1.155 3 234 265 -- 349 On request
5T183H 6.000 600 187 720 1.220 600-1.200 4x150 950 4 284 268 -- 555 On request
2T183HTM 1.530 1.150 132 585 920 1.150-1.950 8x100 1.065 2 198 311 436 252 On request
2T183HTM 1.530 1.150 142 585 920 1.150-1.950 8x100 1.165 3 208 292 403 281 On request
3T183HTM 2.475 1.140 155 720 1.150 1.140-1.940 8x100 1.160 3 234 290 398 386 On request
5T183HTM 3.850 1.280 145 720 1.220 1.280-2.080 8x100 940 4 242 329 469 546 On request
2T183HTH 1.525 1.155 132 585 920 1.155-1.965 - 1.065 2 198 330 471 268 On request
2T183HTH 1.525 1.155 142 585 920 1.155-1.965 - 1.165 3 208 310 437 296 On request
3T183HTH 2.480 1.135 155 720 1.150 1.135-1.945 - 1.160 3 234 332 424 420 On request
5T183HTH 3.910 1.260 145 720 1.220 1.260-2.070 - 950 4 242 370 502 585 On request
