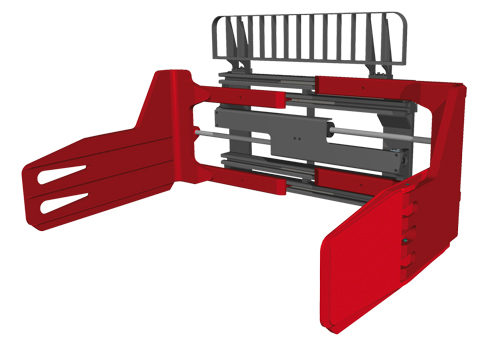

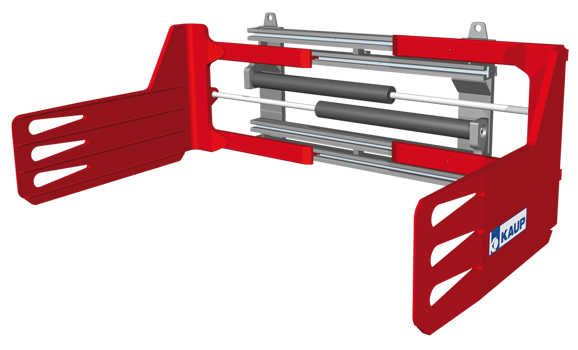

T413_VSS Bale Clamp/Pulp Bale Clamp

with valveblock sideshift dependent on the opening range - 2 hydraulic functions


The T413 attachment is designed with high visibility is mainly used for in-plant, non-palletised transportation of bales of paper, waste paper, tobacco and textiles or also boxes and containers. Pulp, foamed plastic (polystyrene) wool and Big-Bags can also be transported with specially designed clamping arms.

  • Excellent price-performance ratio
  • Very good visibility
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Solid slim arm design
  • Valveblock sideshift serially
  • Combination with KAUP rotary devices possible
  • Customer specified modifications feasible

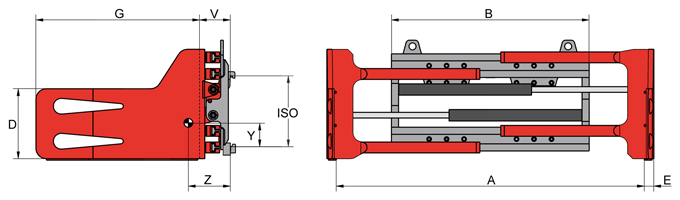

Model Cap. kg LCD mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight app. kg
1,5T413 1.400 500 495-1.675 970 440 37 800 2 156 225 352
1,5T413 1.400 500 495-1.675 970 440 37 1.000 2 156 288 388
1,5T413 1.400 500 495-1.675 970 440 37 1.200 2 156 359 433
1,5T413 1.400 500 565-1.815 970 440 37 800 2 156 225 353
1,5T413 1.400 500 565-1.815 970 440 37 1.000 2 156 288 389
1,5T413 1.400 500 565-1.815 970 440 37 1.200 2 156 358 434
1,5T413 1.400 500 425-1.605 1.040 440 37 800 2 156 224 356
1,5T413 1.400 500 425-1.605 1.040 440 37 1.000 2 156 286 392
1,5T413 1.400 500 425-1.605 1.040 440 37 1.200 2 156 356 437
1,5T413 1.400 500 495-1.745 1.040 440 37 800 2 156 223 357
1,5T413 1.400 500 495-1.745 1.040 440 37 1.000 2 156 285 393
1,5T413 1.400 500 495-1.745 1.040 440 37 1.200 2 156 355 438
1,5T413 1.400 500 480-1.880 1.200 440 37 800 2 156 218 368
1,5T413 1.400 500 480-1.880 1.200 440 37 1.000 2 156 280 404
1,5T413 1.400 500 480-1.880 1.200 440 37 1.200 2 156 348 449
2T413 2.100 500 575-1.875 1.040 440 42 800 2 171 224 430
2T413 2.100 500 575-1.875 1.040 440 42 1.000 2 171 285 473
2T413 2.100 500 575-1.875 1.040 440 42 1.200 2 171 355 532
2T413 2.100 500 575-1.875 1.040 440 42 800 3 171 224 430
2T413 2.100 500 575-1.875 1.040 440 42 1.000 3 171 285 473
2T413 2.100 500 575-1.875 1.040 440 42 1.200 3 171 355 532
2T413 2.100 500 675-2.075 1.040 440 42 800 2 171 223 432
2T413 2.100 500 675-2.075 1.040 440 42 1.000 2 171 284 475
2T413 2.100 500 675-2.075 1.040 440 42 1.200 2 171 354 534
2T413 2.100 500 675-2.075 1.040 440 42 800 3 171 223 432
2T413 2.100 500 675-2.075 1.040 440 42 1.000 3 171 284 475
2T413 2.100 500 675-2.075 1.040 440 42 1.200 3 171 354 534
2T413 2.100 500 485-1.785 1.130 440 42 800 2 171 222 435
2T413 2.100 500 485-1.785 1.130 440 42 1.000 2 171 282 478
2T413 2.100 500 485-1.785 1.130 440 42 1.200 2 171 352 537
2T413 2.100 500 485-1.785 1.130 440 42 800 3 171 222 435
2T413 2.100 500 485-1.785 1.130 440 42 1.000 3 171 282 478
2T413 2.100 500 485-1.785 1.130 440 42 1.200 3 171 352 537
2T413 2.100 500 585-1.985 1.130 440 42 800 2 171 221 437
2T413 2.100 500 585-1.985 1.130 440 42 1.000 2 171 282 480
2T413 2.100 500 585-1.985 1.130 440 42 1.200 2 171 351 539
2T413 2.100 500 585-1.985 1.130 440 42 800 3 171 221 437
2T413 2.100 500 585-1.985 1.130 440 42 1.000 3 171 282 480
2T413 2.100 500 585-1.985 1.130 440 42 1.200 3 171 351 539
2T413 2.100 500 485-1.985 1.330 440 42 800 2 171 217 451
2T413 2.100 500 485-1.985 1.330 440 42 1.000 2 171 276 494
2T413 2.100 500 485-1.985 1.330 440 42 1.200 2 171 344 552
2T413 2.100 500 485-1.985 1.330 440 42 800 3 171 217 451
2T413 2.100 500 485-1.985 1.330 440 42 1.000 3 171 276 494
2T413 2.100 500 485-1.985 1.330 440 42 1.200 3 171 344 552
2T413 2.100 500 595-2.395 1.520 440 42 800 2 171 203 490
2T413 2.100 500 595-2.395 1.520 440 42 1.000 2 171 259 533
2T413 2.100 500 595-2.395 1.520 440 42 1.200 2 171 325 592
2T413 2.100 500 595-2.395 1.520 440 42 800 3 171 203 490
2T413 2.100 500 595-2.395 1.520 440 42 1.000 3 171 259 533
2T413 2.100 500 595-2.395 1.520 440 42 1.200 3 171 325 592
3T413 2.500 500 475-1.775 1.130 500 47 1.000 2 185 303 592
3T413 2.500 500 475-1.775 1.130 500 47 1.200 2 185 340 615
3T413 2.500 500 475-1.775 1.130 500 47 1.000 3 185 303 592
3T413 2.500 500 475-1.775 1.130 500 47 1.200 3 185 340 615
3T413 2.500 500 575-1.975 1.130 500 47 1.000 2 185 303 594
3T413 2.500 500 575-1.975 1.130 500 47 1.200 2 185 339 617
3T413 2.500 500 575-1.975 1.130 500 47 1.000 3 185 303 594
3T413 2.500 500 575-1.975 1.130 500 47 1.200 3 185 339 617
3T413 2.500 500 475-1.975 1.330 500 47 1.000 2 185 296 611
3T413 2.500 500 475-1.975 1.330 500 47 1.200 2 185 332 634
3T413 2.500 500 475-1.975 1.330 500 47 1.000 3 185 296 611
3T413 2.500 500 475-1.975 1.330 500 47 1.200 3 185 332 634
3T413 2.500 500 605-2.235 1.330 500 47 1.000 2 185 295 613
3T413 2.500 500 605-2.235 1.330 500 47 1.200 2 185 331 637
3T413 2.500 500 605-2.235 1.330 500 47 1.000 3 185 295 613
3T413 2.500 500 605-2.235 1.330 500 47 1.200 3 185 331 637
3T413 2.500 500 475-2.105 1.460 500 47 1.000 2 185 292 623
3T413 2.500 500 475-2.105 1.460 500 47 1.200 2 185 327 647
3T413 2.500 500 475-2.105 1.460 500 47 1.000 3 185 292 623
3T413 2.500 500 475-2.105 1.460 500 47 1.200 3 185 327 647
3T413 2.500 500 645-2.445 1.460 500 47 1.000 2 185 291 626
3T413 2.500 500 645-2.445 1.460 500 47 1.200 2 185 326 650
3T413 2.500 500 645-2.445 1.460 500 47 1.000 3 185 291 626
3T413 2.500 500 645-2.445 1.460 500 47 1.200 3 185 326 650
4T413 3.000 500 575-1.975 1.130 500 47 1.000 3 195 268 674
4T413 3.000 500 575-1.975 1.130 500 47 1.200 3 195 311 709
4T413 3.000 500 375-1.775 1.330 500 47 1.000 3 195 263 691
4T413 3.000 500 375-1.775 1.330 500 47 1.200 3 195 305 725
4T413 3.000 500 475-1.975 1.330 500 47 1.000 3 195 262 693
4T413 3.000 500 475-1.975 1.330 500 47 1.200 3 195 304 727
4T413 3.000 500 605-2.235 1.330 500 47 1.000 3 195 262 696
4T413 3.000 500 605-2.235 1.330 500 47 1.200 3 195 304 730
4T413 3.000 500 345-1.845 1.460 500 47 1.000 3 195 259 704
4T413 3.000 500 345-1.845 1.460 500 47 1.200 3 195 301 738
4T413 3.000 500 475-2.105 1.460 500 47 1.000 3 195 259 706
4T413 3.000 500 475-2.105 1.460 500 47 1.200 3 195 300 741
4T413 3.000 500 635-2.435 1.460 500 47 1.000 3 195 258 710
4T413 3.000 500 635-2.435 1.460 500 47 1.200 3 195 299 744
4T413 3.000 500 385-2.015 1.550 500 47 1.000 3 195 252 758
4T413 3.000 500 385-2.015 1.550 500 47 1.200 3 195 292 793
4,5T413 3.200 600 595-1.995 1.200 500 52 1.200 3 226 309 838
4,5T413 3.200 600 595-1.995 1.200 500 52 1.400 3 226 374 907
4,5T413 3.200 600 595-1.995 1.200 500 52 1.600 3 226 447 949
4,5T413 3.200 600 465-1.865 1.330 500 52 1.200 3 226 305 854
4,5T413 3.200 600 465-1.865 1.330 500 52 1.400 3 226 368 923
4,5T413 3.200 600 465-1.865 1.330 500 52 1.600 3 226 441 965
4,5T413 3.200 600 695-2.325 1.330 500 52 1.200 3 226 303 862
4,5T413 3.200 600 695-2.325 1.330 500 52 1.400 3 226 366 930
4,5T413 3.200 600 695-2.325 1.330 500 52 1.600 3 226 439 970
4,5T413 3.200 600 435-1.935 1.460 500 52 1.200 3 226 300 873
4,5T413 3.200 600 435-1.935 1.460 500 52 1.400 3 226 362 942
4,5T413 3.200 600 435-1.935 1.460 500 52 1.600 3 226 434 983
4,5T413 3.200 600 565-2.195 1.460 500 52 1.200 3 226 299 877
4,5T413 3.200 600 565-2.195 1.460 500 52 1.400 3 226 361 946
4,5T413 3.200 600 565-2.195 1.460 500 52 1.600 3 226 433 986
4,5T413 3.200 600 765-2.595 1.460 500 52 1.200 3 226 297 884
4,5T413 3.200 600 765-2.595 1.460 500 52 1.400 3 226 359 953
4,5T413 3.200 600 765-2.595 1.460 500 52 1.600 3 226 431 991
5T413 3.900 600 640-2.270 1.460 500 52 1.200 4 221 311 990
5T413 3.900 600 640-2.270 1.460 500 52 1.400 4 221 344 1.027
5T413 3.900 600 640-2.270 1.460 500 57 1.600 4 226 434 1.168
5T413 3.900 600 550-2.180 1.550 500 52 1.200 4 221 308 1.001
5T413 3.900 600 550-2.180 1.550 500 52 1.400 4 221 341 1.038
5T413 3.900 600 550-2.180 1.550 500 57 1.600 4 226 431 1.179
5T413 3.900 600 550-2.450 1.820 500 52 1.200 4 221 299 1.042
5T413 3.900 600 550-2.450 1.820 500 52 1.400 4 221 330 1.080
5T413 3.900 600 550-2.450 1.820 500 57 1.600 4 226 418 1.221
5T413 3.900 600 750-2.850 1.820 500 52 1.200 4 221 298 1.049
5T413 3.900 600 750-2.850 1.820 500 52 1.400 4 221 329 1.086
5T413 3.900 600 750-2.850 1.820 500 57 1.600 4 226 417 1.227
5,5T413B 4.400 600 625-2.525 1.740 400 52 1.600 4 254 338 1.490
5,5T413B 4.400 600 625-2.525 1.740 400 52 1.800 4 254 392 1.572
6T413B 4.000 800 615-2.245 1.550 500 57 1.600 4 264 436 1.475
6T413B 5.300 600 715-2.615 1.740 500 57 1.400 4 264 339 1.423
6T413B 5.300 600 715-2.615 1.740 500 57 1.600 4 264 396 1.511
6T413B 5.300 600 600-2.500 1.860 500 57 1.400 4 264 324 1.497
6T413B 5.300 600 600-2.500 1.860 500 57 1.600 4 264 379 1.585
6T413B 5.300 600 630-2.730 2.030 500 57 1.400 4 264 311 1.498
6T413B 5.300 600 630-2.730 2.030 500 57 1.600 4 264 366 1.586
6T413B 5.300 600 525-2.865 2.400 500 57 1.400 4 264 307 1.615
6T413B 5.300 600 525-2.865 2.400 500 57 1.600 4 264 359 1.704
6,5T413B 6.000 800 615-2.515 1.860 500 62 1.600 4 279 393 1.806
6,5T413B 6.000 800 615-2.515 1.860 500 62 1.800 4 279 451 1.894
6,5T413B 6.000 800 645-2.745 2.030 500 62 1.600 4 279 380 1.805
6,5T413B 6.000 800 645-2.745 2.030 500 62 1.800 4 279 438 1.884
6,5T413B 6.000 800 600-3.000 2.400 500 62 1.600 4 279 374 1.925
6,5T413B 6.000 800 600-3.000 2.400 500 62 1.800 4 279 429 2.014
8T413B 8.000 800 700-3.100 2.200 560 82 1.400 4 340 395 2.699
8T413B 8.000 800 700-3.100 2.200 560 82 1.700 4 340 483 2.897
