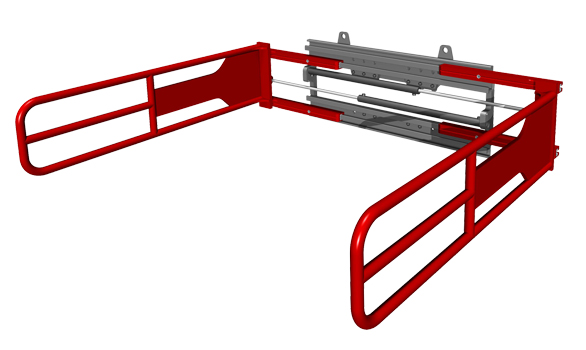

T413R Foam Rubber Clamp

with independent sideshift - 2 hydraulic functions


The easiest way to transport non-palletised bales of foam rubber or styrofoam is with clamps in the T413R range designed with high visibility. The Foam Rubber Clamp has the same high qualities of all KAUP clamps: variability, stability, reliability.

  • Excellent price-performance ratio
  • Good visibility conditions
  • Solid strengthened design with KAUP clamp profiles from T-profiles and C-profiles
  • Strong tube design
  • Independent sideshift serially
  • Customer specified modifications feasible

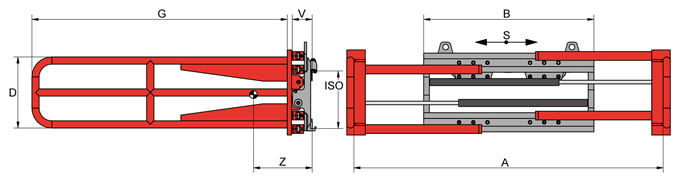

Model Cap. kg LCD mm S mm A mm B mm D mm G mm ISO V mm CofG Z mm Weight app. kg
1,5T413R 500 1.000 ±100 760-2.260 1.130 500 1.500 2 133 266 355
1,5T413R 500 1.000 ±100 840-2.460 1.330 500 1.500 2 133 259 368
1,5T413R 500 1.000 ±100 840-2.460 1.330 500 1.800 2 133 303 378
2T413R 800 1.000 ±100 600-1.900 1.040 500 1.800 2 143 313 377
2T413R 800 1.000 ±100 600-2.450 1.600 500 1.800 2 143 279 438
