T411AH Harbour Clamp

with independent / valveblock sideshift - 2 hydraulic functions - with bolt-on forks - fork length 1.150 mm

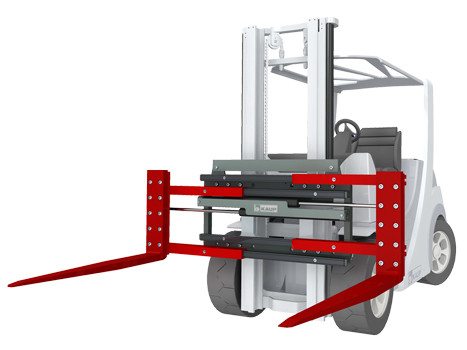

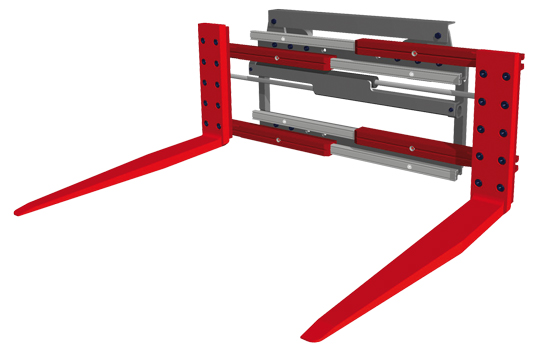

The KAUP Harbour Clamp T411AH is a variation of the fork clamp. Two things make this attachment special: The 2/3 of the hook-on fork lengths also come in the hook-on fork widths to rejuvenated sharpened hook-on forks (knife hook-on forks). The parts are also protected against starting-up damages of the fork clamp - cylinder and side racketeer's unity.

  • For hard use suitable
  • Good visibility conditions
  • Good residual capacity
  • Independent sideshift or valveblock sideshift serially
  • Bolt-on forks serially
  • Cylinder, Ramming, Tube and Side racketeer's protection serially
  • Load backrest optionally

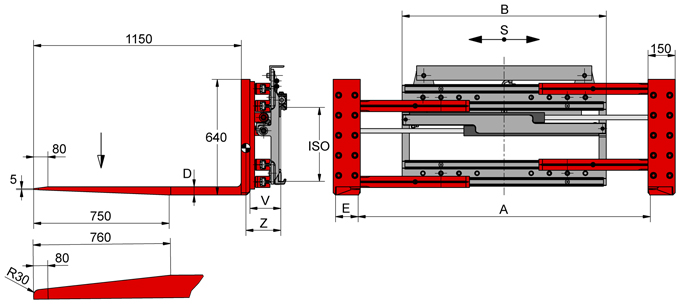

Model Cap. on forks kg Cap. as clamp kg LCD mm S* mm A mm B mm D mm E mm ISO V mm CofG Z mm Weight kg
2,5T411AH 3.000 1.600 500 ±100 200-1.380 1.130 45 125 2 176 203 400
2,5T411AH 3.000 1.600 500 ±100 200-1.380 1.130 45 125 3 176 203 400
2,5T411AH 3.000 1.600 500 ±100 320-1.620 1.130 45 125 2 176 202 402
2,5T411AH 3.000 1.600 500 ±100 320-1.620 1.130 45 125 3 176 202 402
