T409 Double Pallet Handler

with independent sideshift - 2 hydraulic functions

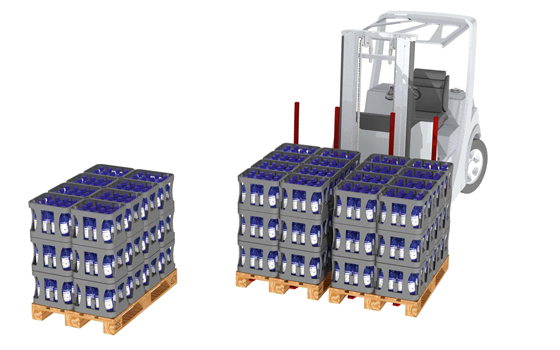

The KAUP Double Pallet Handler T409 sets standards with regard to residual capacity as this attachment has the best lost load centre in its class with highest stability. Paired with the practice orientated construction of all KAUP Multi Pallet Handlers from KAUP T-profiles and C-profiles the Double Pallet Handler T409 succeeds even in heavy duty operation.

  • Double Pallet Handler for heavy duty tasks
  • Excellent residual capacity - best lost load centre in this class
  • Independent sideshift serially
  • Optional: independent control of seperate fork pairs - adjustment of opening range to suit different types of pallets

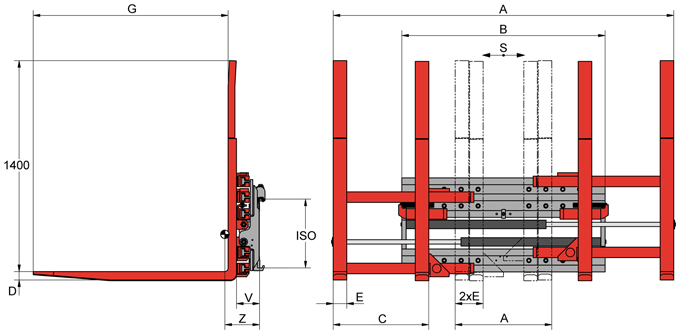

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight kg
1,5T409 1.600 600 ±100 560-1.740 930 40 80 1.150 2 133 253 377
1,5T409 1.600 600 ±100 560-1.740 930 40 80 1.150 3 133 253 377
1,5T409-2 1.600 600 ±100 560-2.010 1.200 40 80 1.150 2 133 233 418
1,5T409-2 1.600 600 ±100 560-2.010 1.200 40 80 1.150 3 133 233 418
2T409 2.500 600 ±100 560-2.010 1.200 50 80 1.150 2 133 253 490
2T409 2.500 600 ±100 560-2.010 1.200 50 80 1.150 3 133 253 490
3T409 3.200 600 ±100 560-2.010 1.230 60 80 1.150 3 133 259 585
