T429-4-6 Six Pallet Handler

with independent sideshift - with bolt-on forks, Pallet handling lengthwise 800 x 1.200 mm for 4 or 6 pallets - 2 hydraulic functions

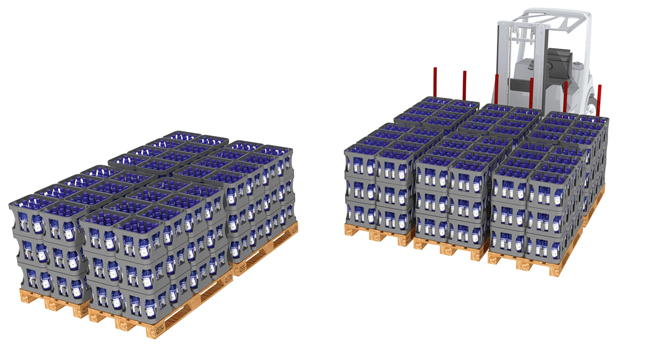

The KAUP Sixfold Pallet Handler T429-4-6 can transport up to six pallets at the same time and makes speedy loading of lorries or wagons from the side possible as well as loading and unloading double deep storage racks. The innovative visibility improved design makes this attachment the lightest in its class with comparable capacity. T-profiles and C-profiles ensure highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance even in heavy duty operation.

  • Six Pallet Handler for heavy duty tasks
  • Excellent residual capacity - lightest attachment in this class
  • Very good visibility conditions
  • Synchronized for quicker working speeds
  • Independent sideshift serially
  • Screw-on forks serially

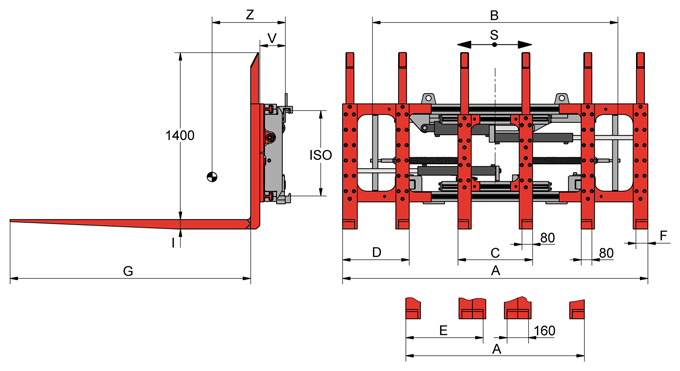

Model Cap. kg LCD mm S mm A mm B mm C mm D mm E mm F mm I mm G mm ISO V mm CofG Z mm Weight kg
4T429-4-6 2.500 1.200 ±125 1.340-2.140 1.400 560 500 580 80 60 2.350 3 212 635 1.250
4T429-4-6 2.500 1.200 ±125 1.340-2.140 1.400 560 500 580 80 60 2.350 4 212 635 1.250
6T429-4-6 4.000 1.200 ±160 1.340-2.290 1.790 560 500 580 90 70 2.350 4 192 615 1.435
6T429-4-6 4.000 1.200 ±160 1.340-2.740 2.260 560 500 580 90 70 2.350 4 192 605 1.470
10T429-4-6 6.000 1.200 ±160 1.340-2.290 1.790 560 500 580 110 70 2.350 4 207 600 1.680
10T429-4-6 6.000 1.200 ±160 1.340-2.740 2.260 560 500 580 110 70 2.350 4 207 585 1.720
10T429-4-6 6.000 1.200 ±160 1.360-2.840 2.260 560 480 560 110 70 2.350 4 207 585 1.720
