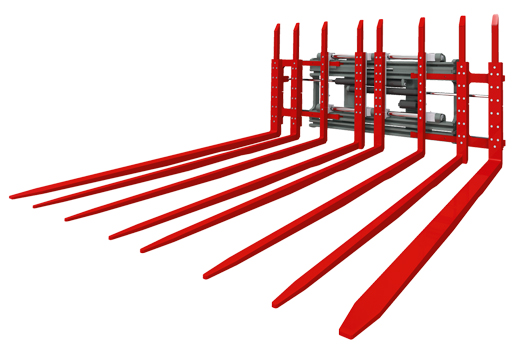

T419-4-8L Four Pallet Handler / Eight Pallet Handler

with independent sideshift - for 2 or 4 pallets side by side or 4 or 8 pallets - 2 hydraulic functions

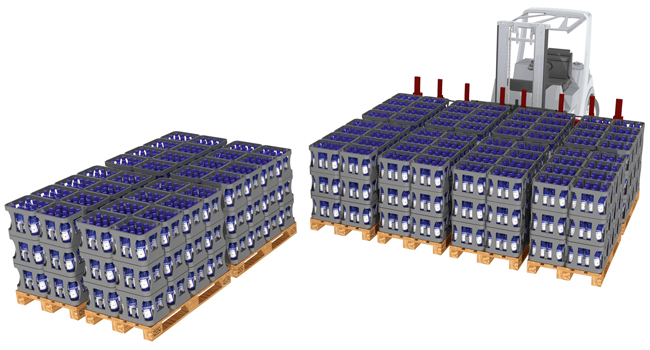

The KAUP Four / Eight Pallet Handler type T419-2-4/T419-4-8-L can transport up to eight pallets at the same time and speeds up loading and unloading of trucks, wagons and storage racks considerably. The innovative visibility improved design ensures a good view to the fork tips and load. The practice orientated construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance.

  • Four / Eight Pallet Handler for heavy duty tasks
  • Good residual capacity
  • Good visibility conditions
  • Synchronized for quicker working speeds
  • Independent sideshift serially
Model Cap. kg LCD mm S mm A mm B mm C mm D mm E mm J mm G mm ISO V mm CofG Z mm Weight kg
4T419-4-8L 3.600 1.200 ±160 1.365-2.965 1.950 60 70 120 70 2.350 4 194 612 1.655
12T419-4-8L 8.000 1.200 ±160 1.365-2.965 2.500 80 70 150 80 2.400 Pin-Type 305 554 3.110
6T419-2-4 4.800 600 ±160 1.365-2.965 1.950 45 50 120 70 1.150 4 192 257 1.320
6T419-2-4 4.800 600 ±250 1.365-2.965 1.950 45 50 120 70 1.150 4 192 256 1.325
