T180BT Telescopic Fork

1 hydraulic function

Request Pricing

The KAUP Telescopic Fork allows goods to be stored double deep on shelves can be easily loaded and unloaded. To achieve this, Telescopic Forks are designed with hydraulic synchronous fork shoes which can, if necessary, be extended step-less.

  • Excellent residual capacity
  • Low lost load centre
  • Very good visibility conditions
  • Forks with synchronism

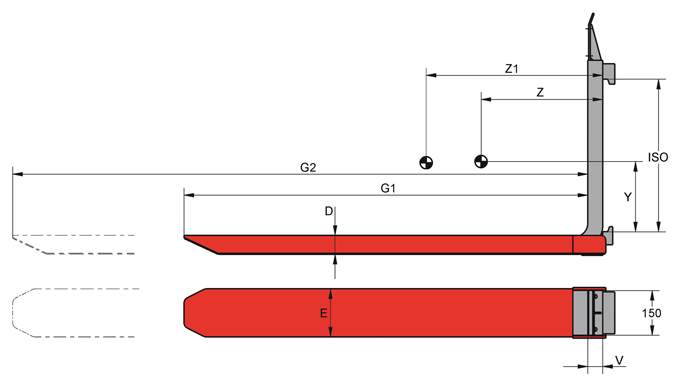

Model Cap. kg LCD mm E mm D mm G1 mm G2 mm ISO V mm CofG Z mm CofG Z1 mm CofG Y mm Weight kg
2T180BT.3 2.000 600 133 56 800 1.200 2 45 246 322 86 139
2T180BT.2 2.000 600 133 56 1.100 1.850 2 45 360 506 61 167
2T180BT 2.000 600 133 56 1.200 2.050 2 45 418 598 56 179
2T180BT.1 2.000 600 133 56 1.350 2.350 2 45 485 703 48 192
2,5T180BT.3 2.500 600 163 56 800 1.200 2 45 238 305 81 176
2,5T180BT.2 2.500 600 163 56 1.100 1.850 2 45 360 494 59 205
2,5T180BT 2.500 600 163 56 1.200 2.050 2 45 422 589 51 217
2,5T180BT.1 2.500 600 163 56 1.350 2.350 2 45 490 692 44 236
3,5T180BT.3 3.500 600 163 56 800 1.200 3 45 226 289 92 186
3,5T180BT.2 3.500 600 163 56 1.100 1.850 3 45 344 471 86 215
3,5T180BT 3.500 600 163 56 1.200 2.050 3 45 403 562 78 227
3,5T180BT.1 3.500 600 163 56 1.350 2.350 3 45 469 662 68 246
4,5T180BT.3 4.500 600 163 56 800 1.200 3 45 214 302 94 180
4,5T180BT.2 4.500 600 163 56 1.100 1.850 3 45 332 482 89 210
4,5T180BT 4.500 600 163 56 1.200 2.050 3 45 392 572 85 222
4,5T180BT.1 4.500 600 163 56 1.350 2.350 3 45 457 677 75 240
6T180BT 6.000 600 165 66 1.200 2.050 3 55 407 582 78 275
6T180BT 6.000 600 165 66 1.200 2.050 4 55 407 582 78 275
6T180BT.1 6.000 600 165 66 1.350 2.350 3 55 473 685 69 295
6T180BT.1 6.000 600 165 66 1.350 2.350 4 55 473 685 69 295
8T180BT 8.000 600 215 66 1.200 2.050 4 55 372 515 85 390
8T180BT.1 8.000 600 215 66 1.350 2.350 4 55 425 610 75 410
