T180FG Conveyer Belt Forks

1 hydraulic function

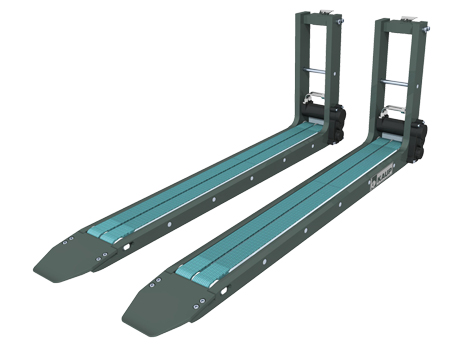

The KAUP Conveyer Belt Forks class T180FG. Can be hung up directly with an ISO connection in a sideshifter or fork positioner of KAUP, the conveyor belt forks extend the application possibilities of the known attachments once more.

  • The best visibility conditions
  • Maximum stacker's load-carrying capacity
  • Number of the tapes and fork dimensions adaptably adaptable

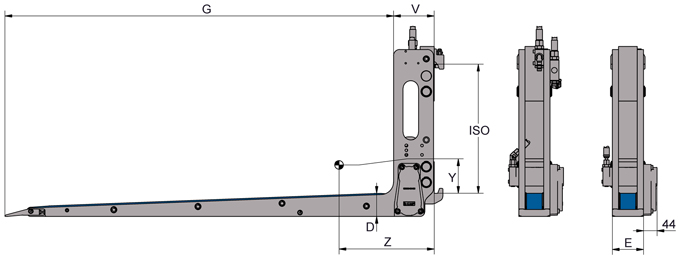

Model Cap. kg LCD mm E mm D mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
1.8T180FG 1.600 600 100 74 1.250 1 2 130 317 85 119
1.8T180FG 1.200 800 100 74 1.650 1 2 130 452 68 136
1.8T180FG 800 1.250 100 74 1.970 1 2 130 567 57 149
