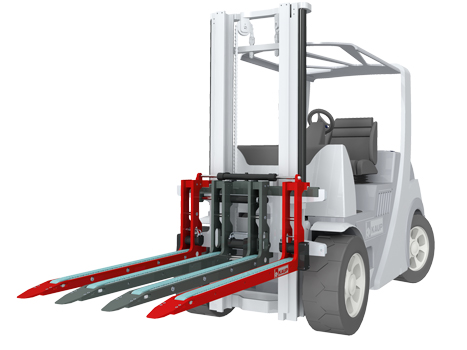

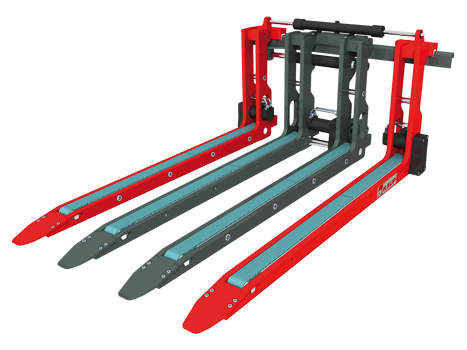

T180FG-2-4S Conveyer Belt Forks

with independent sideshift · with adjustable forks - 2 hydraulic functions + solenoid valve


Variability is a key component of the KAUP Conveyer Belt Forks T180FG-2-4S. The independent sideshift and the hydraulically adjustable forks of this attachment facilitate that different palettised and non-palettised loads can be transported point-exactly.

  • The best visibility conditions
  • Low lost load
  • Maximum stacker's load-carrying capacity
  • Independent sideshift serially

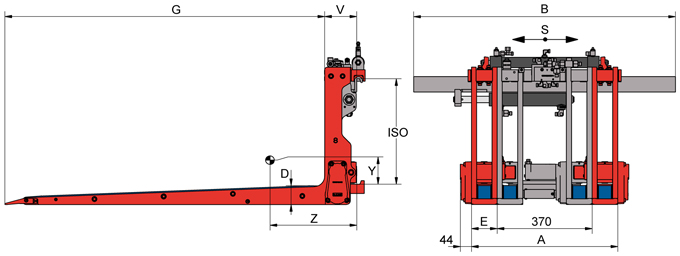

Model Pallet handling Cap. kg LCD mm S mm A mm B mm E mm D mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg
1.8T180FG-2-4S Europaletten 1.600 600 ±100 570-850 1.020 100 74 1.250 2 125 326 90 225
1.8T180FG-2-4S Europaletten 1.200 800 ±100 570-850 1.020 100 74 1.650 2 125 464 71 260
