T451W Pallet Turnover Clamp

Rotation 360° continuous - with two movable fork pairs - 2 hydraulic functions

Request Pricing

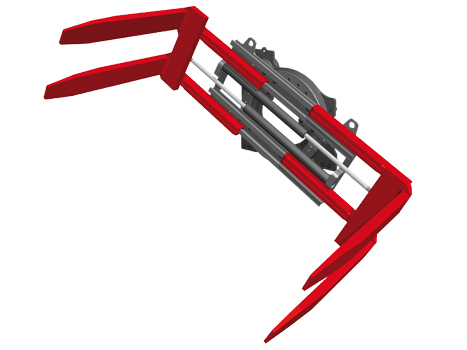

The KAUP Pallet Turnover Clamp T451W is an attachment designed with high visibility and is suitable for all kinds of applications. It can be used to turn palletised and non-palletised goods or to exchange pallets e.g. from production pallets to transport pallets. It is also suitable for emptying grid boxes or other transport containers.

  • Good visibility conditions
  • Solid construction
  • Rotation 360° endless
  • Two double forks serially for secure handling
  • Optionally available with sideshift available
  • Optionally with lateral supporting plate

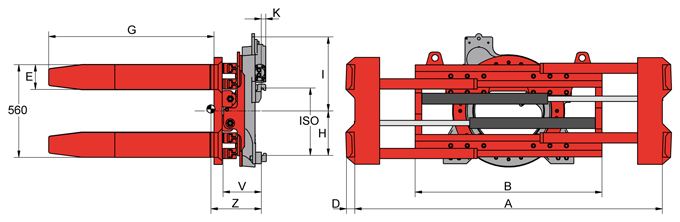

Model Cap. kg LCD mm A mm B mm D mm E mm G mm H mm I mm K mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1,5T451W 1.250 500 540-1.720 970 45 125 1.200 213 432 33 6.013 7,6 2 216 383 531 On request
1,5T451W 1.250 500 530-1.930 1.200 45 125 1.200 213 432 33 6.013 7,6 2 216 376 547 On request
2T451W 2.000 500 560-1.860 1.130 50 150 1.200 269 515 33 7.700 9,7 2 232 385 725 On request
2T451W 2.000 500 560-2.060 1.330 50 150 1.200 269 515 33 7.700 9,7 2 232 381 740 On request
2T451W 2.000 500 560-1.860 1.130 50 150 1.200 269 515 33 7.700 9,7 3 232 385 725 On request
2T451W 2.000 500 560-2.060 1.330 50 150 1.200 269 515 33 7.700 9,7 3 232 381 740 On request
3T451W 2.500 500 560-1.860 1.130 50 150 1.200 338 395 40 8.950 11,3 3 279 373 869 On request
3T451W 2.500 500 560-2.060 1.330 50 150 1.200 338 395 40 8.950 11,3 3 279 369 888 On request
4T451W 2.900 500 560-2.060 1.330 60 160 1.200 338 395 40 8.950 11,3 3 289 380 1.029 On request
4T451W 2.900 500 560-2.190 1.460 60 160 1.200 338 395 40 8.950 11,3 3 289 378 1.041 On request
4,5T451W 2.900 500 560-2.060 1.330 60 160 1.200 328 675 36 14.823 17,4 4 291 364 1.155 On request
4,5T451W 2.900 500 560-2.180 1.460 60 160 1.200 328 675 36 14.823 17,4 4 291 362 1.169 On request
5T451W 3.500 600 580-2.210 1.550 60 200 1.200 345 455 40 13.434 15,7 4 360 403 1.523 On request
5T451W 3.500 600 850-2.750 1.550 60 200 1.200 345 455 40 13.434 15,7 4 360 399 1.587 On request
