T451W180 Pallet Turnover Clamp

Rotation 360° continuous - with additional pair of forks to empty various boxes - 2 hydraulic functions

Request Pricing

An additional fork pair distinguishes this attachment from the Pallet Turnover Clamp T451. It allows easy and safe emptying of different transport containers or grid boxing with suitable insertion slots.

  • Good visibility conditions
  • Stable construction
  • Rotation 360° endlessly
  • Two double forks with additional fork pair serially for safe handling
  • Optionally with sideshift available

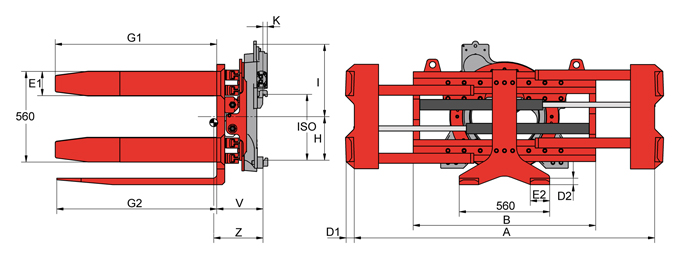

Model Cap. kg LCD mm A mm B mm E1 mm D1 mm G1 mm E2 mm D2 mm G2 mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight app. kg
1,5T451W/180 1.250 500 540-1.720 970 125 45 1.200 125 45 1.200 6.013 7,6 2B 267 431 678
1,5T451W/180 1.250 500 530-1.930 1.200 125 45 1.200 125 45 1.200 6.013 7,6 2B 267 425 694
2T451W/180 2.000 500 560-1.860 1.130 150 50 1.200 150 50 1.200 7.700 9,7 2B 285 437 905
2T451W/180 2.000 500 560-2..060 1.330 150 50 1.200 150 50 1.200 7.700 9,7 2B 285 432 920
2T451W/180 2.000 500 560-1.860 1.130 150 50 1.200 150 50 1.200 7.700 9,7 3B 285 437 905
2T451W/180 2.000 500 560-2..060 1.330 150 50 1.200 150 50 1.200 7.700 9,7 3B 285 432 920
3T451W/180 2.500 500 560-1.860 1.130 150 50 1.200 150 50 1.200 8.950 11,3 3B 333 423 1.083
3T451W/180 2.500 500 560-2..060 1.330 150 50 1.200 150 50 1.200 8.950 11,3 3B 333 419 1.102
