T453180 Rotating Bale Clamp

Rotation 360° continuous - with additional pair of forks to empty various boxes - 2 hydraulic functions

Request Pricing

An additional fork pair distinguishes this attachment from the Rotating Bale Clamp T453 and allows for easy and safe emptying of the most different transport containers or grid boxing with suitable insertion slots.

  • Good visibility conditions
  • Stable construction
  • Rotation 360° endlessly
  • Optionally with sideshift available

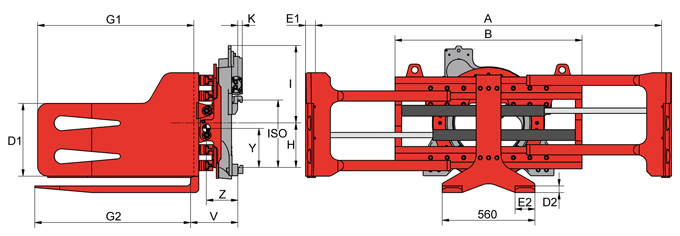

Model Cap. kg LCD mm A mm B mm D1 mm E1 mm G1 mm E2 mm D2 mm G2 mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm CofG Y mm Weight app. kg
1,5T453/180 1.250 500 655-1.755 970 440 37 1.200 125 45 1.200 6.013 7,6 2B 267 427 153 652
1,5T453/180 1.250 500 655-2.005 1.200 440 37 1.200 125 45 1.200 6.013 7,6 2B 267 420 155 668
2T453/180 2.000 500 575-1.875 1.040 440 42 1.200 150 50 1.200 7.700 9,7 2 285 411 204 863
2T453/180 2.000 500 585-1.985 1.130 440 42 1.200 150 50 1.200 7.700 9,7 2 285 409 205 871
2T453/180 2.000 500 585-2.185 1.330 440 42 1.200 150 50 1.200 7.700 9,7 2 285 405 206 886
2T453/180 2.000 500 575-1.875 1.040 440 42 1.200 150 50 1.200 7.700 9,7 3B 285 411 204 863
2T453/180 2.000 500 585-1.985 1.130 440 42 1.200 150 50 1.200 7.700 9,7 3B 285 409 205 871
2T453/180 2.000 500 585-2.185 1.330 440 42 1.200 150 50 1.200 7.700 9,7 3B 285 405 206 886
3T453/180 2.500 500 695-2.095 1.130 500 47 1.200 150 50 1.200 8.950 11,3 3B 328 421 231 1.133
3T453/180 2.500 500 675-2.175 1.330 500 47 1.200 150 50 1.200 8.950 11,3 3B 328 418 233 1.150
