T451WA Pallet Turnover Clamp with Pusher

360° rotation continuous - with Pusher - 2 hydraulic functions plus solenoid valve

Request Pricing

Pallet Turnover Clamps with Pushers are put into operation when loads have to be transferred from a production pallet to a transport pallet or directly loaded on containers, then onto lorries or railway wagons. The palletized goods lifted with forks, clamped and turned 180°. When the clamp is opened, the load rests on both carrying plates and then can be pushed off onto the transport pallet into the container or directly onto the lorry or railway wagon.

  • Stable construction
  • Rotation 360° endlessly
  • Optionally with sideshift available

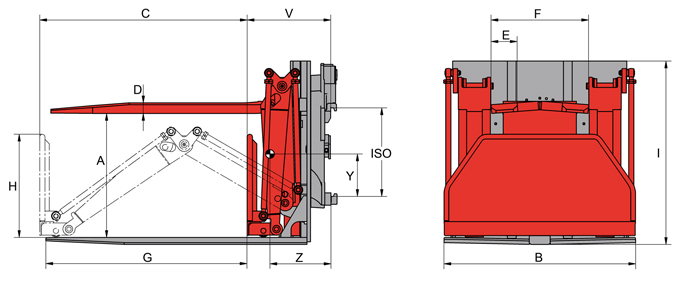

Model Cap. kg LCD mm A mm B mm C mm D mm E mm F mm G mm H mm I mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg
2T451WA 1.400 600 700-1.200 1.100 1.250 50 150 650 1.200 565 1.045 7.700 9,7 2 422 455 1.082
2T451WA 1.400 600 700-1.200 1.100 1.250 50 150 650 1.200 565 1.045 7.700 9,7 3 422 455 1.082
3T451WA 2.000 600 1.050-1.675 1.300 1.250 60 160 650 1.200 735 1.135 14.823 17,4 3 509 405 1.550
3T451WA 2.000 600 1.050-1.675 1.300 1.250 60 160 650 1.200 735 1.135 14.823 17,4 4 481 380 1.620
4T451WA 2.500 600 1.050-1.675 1.300 1.250 60 160 650 1.200 735 1.135 14.823 17,4 4 490 395 1.755
