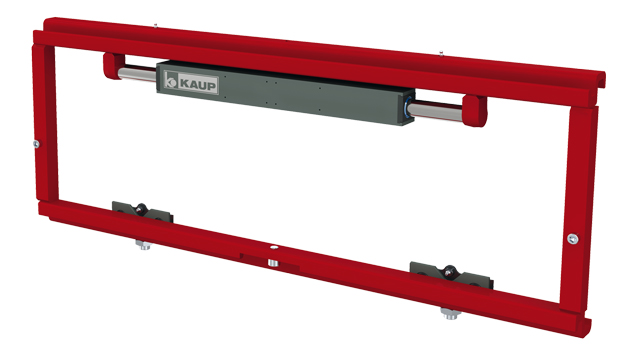

2T151P4N Sideshifter

Quick mounting - hook-on type QUICKSEAL cylinders, bottom mounting brackets with EASYSLIDE greasable sliding pads, Max. width 1.190 mm, 1 hydraulic function

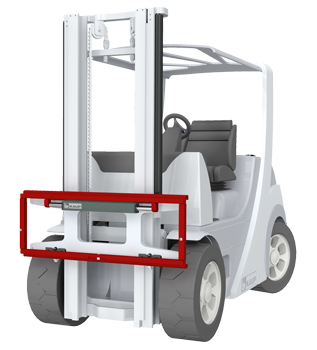

The 2T151P4N Sideshifter attachment has very good visibility and can be used when moving palletised goods on a regular basis. The Sideshifter optimise's on-site material handling.

  • Highest possible residual capacity due to low weight and minimum lost load centre
  • Most favourable lost load centre of all hook-on sideshifters currently available
  • Maximum visibility - very slim S-profiles form the fork carriage

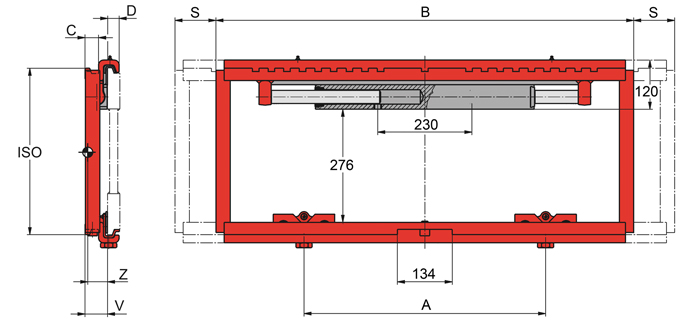

Model Cap. kg LCD mm B mm A mm C mm D mm S mm ISO V mm CofG Z mm Weight kg
2T151P4N 2.500 500 890 550 33 28 ±100 2 55 20 51
2T151P4N 2.500 500 920 590 33 28 ±100 2 55 20 52
2T151P4N 2.500 500 980 590 33 28 ±100 2 55 20 54
2T151P4N 2.500 500 1.000 590 33 28 ±100 2 55 20 54
2T151P4N 2.500 500 1.020 590 33 28 ±100 2 55 20 55
2T151P4N 2.500 500 1.040 590 33 28 ±100 2 55 20 56
2T151P4N 2.500 500 1.100 590 33 28 ±100 2 55 20 57
2T151P4N 2.500 500 1.150 590 33 28 ±100 2 55 20 58
