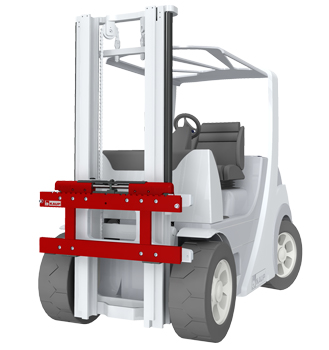

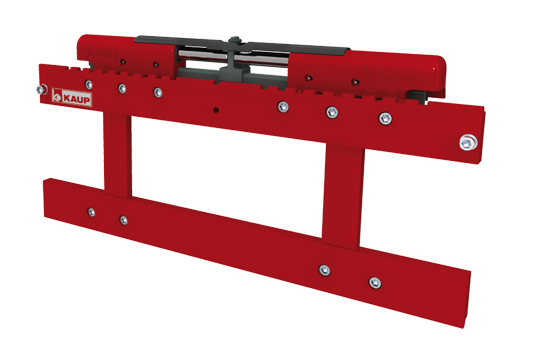

T151P2 Sideshifter High-Performance

1 hydraulic function, Quick mounting, hook-on type, end-of-stroke slow-down SOFTSTOP, high visibility design, e.g. CofG up to 1.800 mm, Bottom brackets with roller guidance, SMOOTHROLL.

Request Pricing

The KAUP High-Performance Sideshifter T151P2 has components such as housings, pistons and brackets which are identical in design as those used in other KAUP attachments with the additional of a sideshift function. This optimises maintenance and simplifies repairs.

  • Strong design for heavy duty operation
  • Best visibility
  • Construction widths of up to 3.500 mm possible
  • Equal shifting force and shifting speeds in both directions

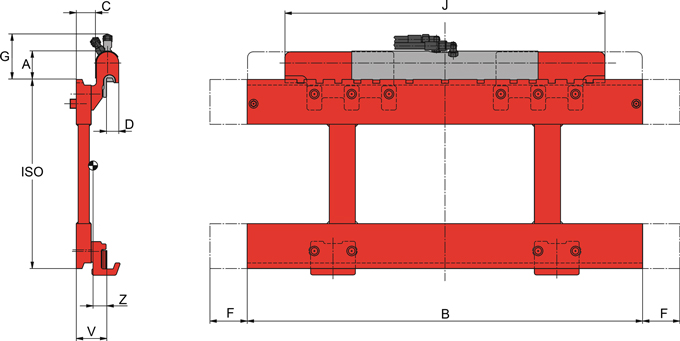

Model Cap. kg LCD mm A mm B mm C mm D mm S mm G mm J mm ISO V mm CofG Z mm Weight kg
2T151P2 2.500 600 76 890 44 32 ±100 116 858 2 72 37 70
2T151P2 2.500 600 76 920 44 32 ±100 116 858 2 72 37 72
2T151P2 2.500 600 76 980 44 32 ±100 116 858 2 72 38 74
2T151P2 2.500 600 76 1.020 44 32 ±100 116 858 2 72 39 76
2T151P2 2.500 600 76 1.040 44 32 ±100 116 858 2 72 39 77
2T151P2 2.500 600 76 1.100 44 32 ±100 116 858 2 72 40 80
2T151P2 2.500 600 76 1.150 44 32 ±100 116 858 2 72 43 97
2T151P2 2.500 600 76 1.200 44 32 ±100 116 858 2 72 43 100
2T151P2 2.500 600 76 1.300 54 32 ±100 116 858 2 82 44 105
2T151P2 2.500 600 76 1.600 54 32 ±100 116 858 2 82 52 146
3T151P2 3.000 500 76 1.020 54 34 ±100 116 858 3 82 45 106
3T151P2 3.000 500 76 1.070 54 34 ±100 116 858 3 82 45 110
3T151P2 3.000 500 76 1.100 54 34 ±100 116 858 3 82 46 112
3T151P2 3.000 500 76 1.150 54 34 ±100 116 858 3 82 46 115
3T151P2 3.000 500 76 1.300 54 34 ±100 116 858 3 82 48 132
3T151P2 3.000 500 76 1.600 64 34 ±100 116 858 3 92 57 207
4T151P2 5.000 500 85 1.100 50 40 ±100 125 1.040 3 82 41 136
4T151P2 5.000 500 85 1.150 50 40 ±100 125 1.040 3 82 41 139
4T151P2 5.000 500 85 1.200 50 40 ±100 125 1.040 3 82 42 143
4T151P2 5.000 500 85 1.300 50 40 ±100 125 1.040 3 82 44 156
4T151P2 5.000 500 85 1.310 50 40 ±100 125 1.040 3 82 44 156
4T151P2 5.000 500 85 1.350 50 40 ±100 125 1.040 3 82 44 165
4T151P2 5.000 500 85 1.400 50 40 ±100 125 1.040 3 82 45 180
4T151P2 5.000 500 85 1.410 50 40 ±100 125 1.040 3 82 45 180
4T151P2 5.000 500 85 1.600 60 40 ±100 125 1.040 3 92 54 231
4T151P2 5.000 500 85 1.800 60 40 ±100 125 1.040 3 92 55 248
4T151P2 5.000 500 85 2.000 60 40 ±100 125 1.040 3 92 56 256
4,8T151P2 5.000 600 103 1.150 42 44 ±100 165 922 3 82 39 149
4,8T151P2 5.000 600 103 1.200 42 44 ±100 165 922 3 82 40 153
4,8T151P2 5.000 600 103 1.300 42 44 ±100 165 922 3 82 42 166
4,8T151P2 5.000 600 103 1.310 42 44 ±100 165 922 3 82 42 166
4,8T151P2 5.000 600 103 1.350 42 44 ±100 165 922 3 82 42 175
4,8T151P2 5.000 600 103 1.410 42 44 ±100 165 922 3 82 44 190
4,8T151P2 5.000 600 103 1.600 52 44 ±100 165 922 3 92 52 241
4,8T151P2 5.000 600 103 1.800 52 44 ±100 165 922 3 92 53 258
4,8T151P2 5.000 600 103 2.000 52 44 ±100 165 922 3 92 56 313
5T151P2 5.000 600 80 1.220 60 42 ±100 125 1.040 4 92 51 212
5T151P2 5.000 600 80 1.400 60 42 ±100 125 1.040 4 92 53 231
5T151P2 5.000 600 80 1.800 70 42 ±100 125 1.040 4 102 63 334
5T151P2 5.000 600 80 2.180 70 42 ±100 125 1.040 4 102 63 383
5T151P2 5.000 600 80 2.260 70 53 ±100 125 1.040 4 112 65 455
5,5T151P2 7.000 600 96 1.220 52 44 ±100 156 922 4 92 50 230
5,5T151P2 7.000 600 96 1.400 52 44 ±100 156 922 4 92 51 249
5,5T151P2 7.000 600 96 1.800 62 44 ±100 156 922 4 102 61 352
5,5T151P2 7.000 600 96 2.180 62 44 ±100 156 922 4 102 62 401
5,5T151P2 7.000 600 96 2.260 62 44 ±100 156 922 4 102 62 473
6T151P2 8.000 600 112 1.400 50 53 ±160 212 1.392 4 92 42 295
6T151P2 8.000 600 112 1.800 60 53 ±160 212 1.392 4 102 53 397
6T151P2 8.000 600 112 2.180 60 53 ±160 212 1.392 4 102 55 446
6T151P2 8.000 600 112 2.260 70 53 ±160 212 1.392 4 112 61 516
10T151 8.000 1.100 112 1.800 54 53 ±160 45 1.510 4 106 46 455
10T151 8.000 1.100 112 2.000 54 53 ±160 45 1.510 4 106 46 490
10T151 8.000 1.100 112 2.260 54 53 ±160 45 1.510 4 106 46 535
10T151 8.000 1.100 112 2.400 54 53 ±160 45 1.510 4 106 46 560
