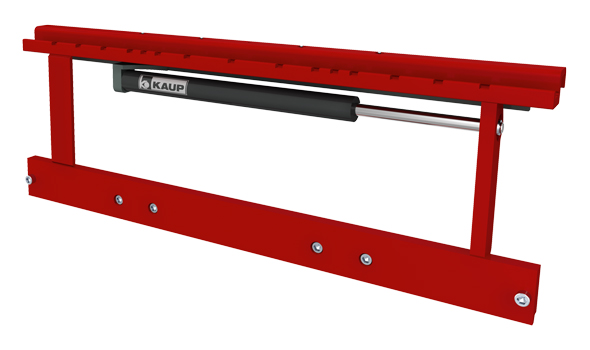

T151P-C Sideshifter with increased Sideshift Stroke

Sideshifter for container stuffing applications - 1 hydraulic function

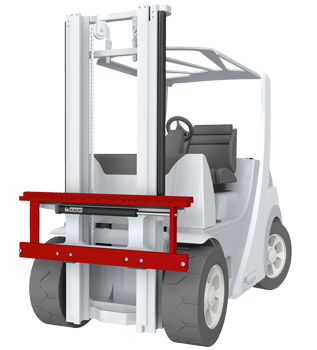

The KAUP Container Sideshifter T151P-C simplifies loading and unloading of containers. This attachment has increased sideshift stroke which makes it possible to reach beyond the chassis width of the forklift truck and place loads closer to the container wall.

  • Optimal utilisation for container loading
  • Ideal for confined spaces

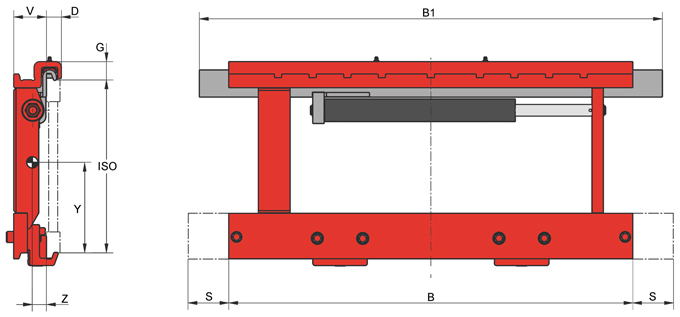

Model Cap. kg LCD mm B mm B1 mm S mm D mm G mm ISO V mm CofG Z mm Weight app. kg
2T151P4N-C 2.500 500 780 800 ±160 33 33 2 55 21 55
2T151P-C 2.500 500 780 1.020 ±225 33 40 2 72 34 57
2T151P-C 2.500 500 1.060 1.020 ±225 33 40 2 72 35 68
2T151P-C 2.500 500 1.150 1.020 ±225 33 40 2 72 35 73
4T151P-C 5.000 500 780 1.100 ±250 40 49 3 82 36 90
4T151P-C 5.000 500 1.200 1.100 ±250 40 49 3 82 38 117
4T151P-C 5.000 500 1.600 1.100 ±250 40 49 3 82 40 143
6T151P-C 8.000 600 1.800 1.100 ±250 50 66 4 107 55 301
