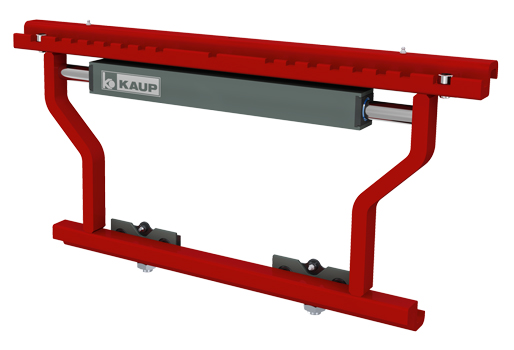

2T151P4NSchub Sideshifter for Reach Trucks

1 hydraulic function, 2T151P4N with EASYSLIDE greasable sliding pads


The Sideshifter for Reach Trucks 2T151P4 is the right choice when palletised goods must be moved laterally on a regular basis.

  • Design and fork carriage width specially adapted for operation with Reach Trucks
  • Fork carriage tilt for Reach Trucks with fixed mast possible

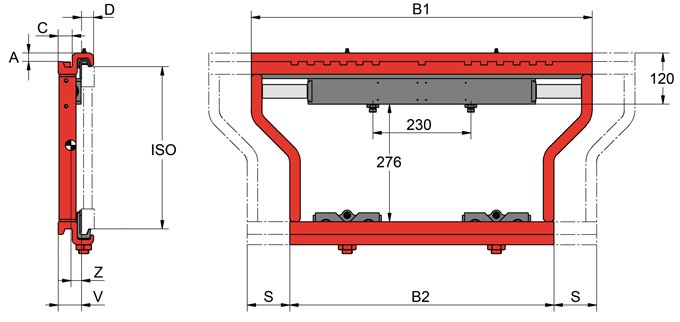

Model Cap. kg LCD mm A mm B1 mm B2 mm C mm D mm S mm ISO V mm CofG Z mm Weight kg
2T151P4N 2.500 500 20 822 720 33 28 ±50 2 55 24 44
2T151P4N 2.500 500 20 900 720 33 28 ±75 2 55 24 45
