T413G-1L Carton Clamp

with independent sideshift - rubber coated arms - one arm fix, one arm swivelling - 2 hydraulic functions


The KAUP Carton Clamp T413G-1L is used where white and brown product as well as other wide loading property is used. On account of his very slender arms this attachment is suited particularly for the truck and container loading.

  • Low lost load - very good residual capacities
  • Very good visibility conditions
  • Very slender clamp arms
  • Independent sideshift serially
  • Load backrest optionally

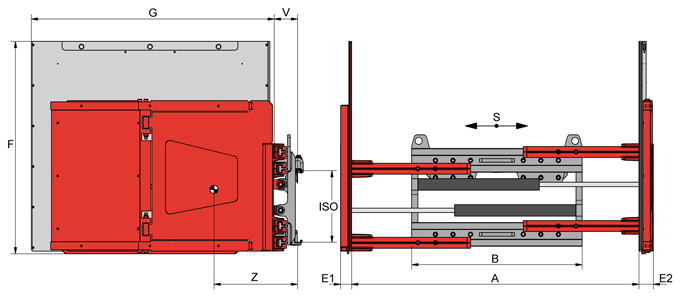

Model Cap. kg LCD mm S mm A mm B mm E1 mm E2 mm F mm G mm ISO V mm CofG Z mm Weight kg
1,5T413G-1L 1.250 500 ±100 475-1.655 970 63 55 1.000 1.000 2 133 340 423
1,5T413G-1L 1.250 500 ±100 475-1.655 970 63 55 1.000 1.200 2 133 396 463
1,5T413G-1L 1.250 500 ±100 475-1.655 970 63 55 1.200 1.200 2 133 467 527
1,5T413G-1L 1.250 500 ±100 475-1.655 970 63 55 1.200 1.380 2 133 487 575
1,5T413G-1L 1.250 500 ±100 325-1.425 1.040 63 55 1.000 1.000 2 133 339 425
1,5T413G-1L 1.250 500 ±100 325-1.425 1.040 63 55 1.000 1.200 2 133 395 465
1,5T413G-1L 1.250 500 ±100 325-1.425 1.040 63 55 1.200 1.200 2 133 466 529
1,5T413G-1L 1.250 500 ±100 325-1.425 1.040 63 55 1.200 1.380 2 133 486 577
1,5T413G-1L 1.250 500 ±100 405-1.585 1.040 63 55 1.000 1.000 2 133 339 425
1,5T413G-1L 1.250 500 ±100 405-1.585 1.040 63 55 1.000 1.200 2 133 395 465
1,5T413G-1L 1.250 500 ±100 405-1.585 1.040 63 55 1.200 1.200 2 133 466 529
1,5T413G-1L 1.250 500 ±100 405-1.585 1.040 63 55 1.200 1.380 2 133 486 577
1,5T413G-1L 1.250 500 ±100 485-1.835 1.130 63 55 1.000 1.000 2 133 336 435
1,5T413G-1L 1.250 500 ±100 485-1.835 1.130 63 55 1.000 1.200 2 133 392 475
1,5T413G-1L 1.250 500 ±100 485-1.835 1.130 63 55 1.200 1.200 2 133 462 539
1,5T413G-1L 1.250 500 ±100 485-1.835 1.130 63 55 1.200 1.380 2 133 481 587
1,5T413G-1L 1.250 500 ±100 465-1.865 1.200 63 55 1.000 1.000 2 133 335 444
1,5T413G-1L 1.250 500 ±100 465-1.865 1.200 63 55 1.000 1.200 2 133 390 484
1,5T413G-1L 1.250 500 ±100 465-1.865 1.200 63 55 1.200 1.200 2 133 460 548
1,5T413G-1L 1.250 500 ±100 465-1.865 1.200 63 55 1.200 1.380 2 133 479 596
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.000 1.000 2 143 332 493
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.000 1.200 2 143 392 538
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.200 1.200 2 143 423 602
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.200 1.380 2 143 476 659
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.000 1.000 3 143 332 493
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.000 1.200 3 143 392 538
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.200 1.200 3 143 423 602
2T413G-1L 2.000 500 ±100 520-1.720 970 63 60 1.200 1.380 3 143 476 659
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.000 1.000 2 143 330 498
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.000 1.200 2 143 390 543
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.200 1.200 2 143 421 607
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.200 1.380 2 143 474 664
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.000 1.000 3 143 330 498
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.000 1.200 3 143 390 543
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.200 1.200 3 143 421 607
2T413G-1L 2.000 500 ±100 550-1.850 1.040 63 60 1.200 1.380 3 143 474 664
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.000 1.000 2 143 328 503
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.000 1.200 2 143 387 548
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.200 1.200 2 143 418 612
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.200 1.380 2 143 471 669
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.000 1.000 3 143 328 503
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.000 1.200 3 143 387 548
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.200 1.200 3 143 418 612
2T413G-1L 2.000 500 ±100 460-1.760 1.130 63 60 1.200 1.380 3 143 471 669
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.000 1.000 2 143 314 527
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.000 1.200 2 143 373 572
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.200 1.200 2 143 404 636
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.200 1.380 2 143 457 693
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.000 1.000 3 143 314 527
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.000 1.200 3 143 373 572
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.200 1.200 3 143 404 636
2T413G-1L 2.000 500 ±100 460-1.960 1.330 63 60 1.200 1.380 3 143 457 693
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.000 1.000 2 143 307 551
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.000 1.200 2 143 366 596
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.200 1.200 2 143 397 660
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.200 1.380 2 143 450 717
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.000 1.000 3 143 307 551
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.000 1.200 3 143 366 596
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.200 1.200 3 143 397 660
2T413G-1L 2.000 500 ±100 570-2.370 1.520 63 60 1.200 1.380 3 143 450 717
