T130F Drum Tipping Device

90° tipping, rubber coated flaps - for cylindrical steel drums - 2 hydraulic functions

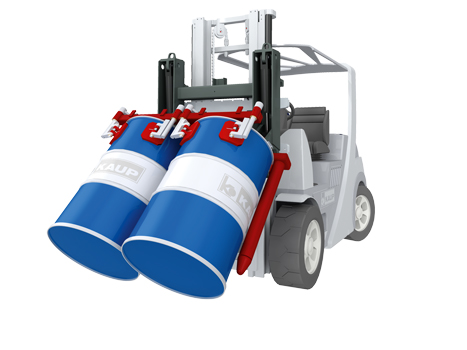

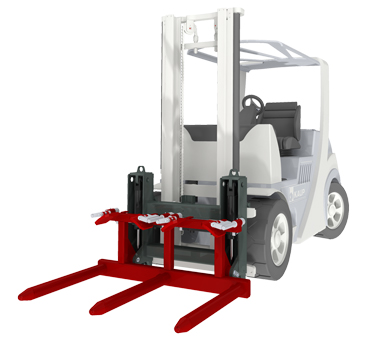

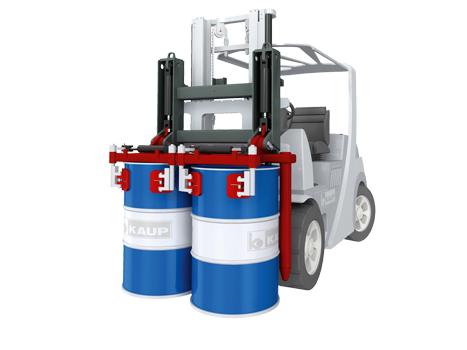

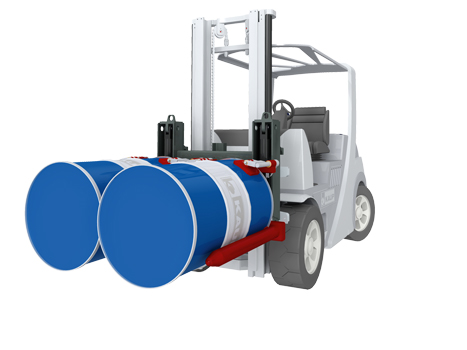

With the KAUP Drum Tipping Device T130F several upright standing cylindrical steel barrels can be lifted at the same time. They can be transported and be positioned upright.

  • Very good price-achievement relation
  • Very good visibility conditions
  • Tilting corner 90° forwards
  • Independent sideshift optionally

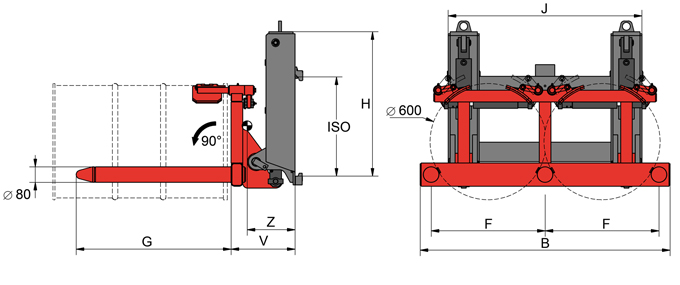

Model Cap. kg LCD mm B mm F mm G mm H mm J mm ISO V mm CofG Z mm Weight kg
1T130F-1 1 300 450 970 588 800 930 390 2 380 282 230
1T130F-2 2 600 450 1.130 588 800 800 1.000 2 330 247 280
1T130F-3 3 900 450 1.920 588 800 800 1.000 2 330 340 350
1T130F-4 4 1.200 450 2.520 588 800 800 1.000 2 330 380 430
