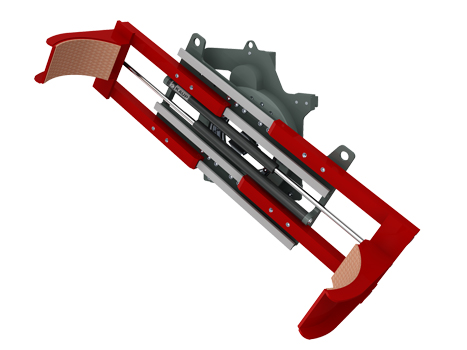

T455 Rotating Drum Clamp

360° rotation continuous - to transport cylindrical steel drums - arms covered with Remagrip, 2 hydraulic function


The KAUP Rotating Drum Clamp T455-1 guarantees the safe transport of cylindrical steel barrels . In addition, the safe lifting, rotating and emptying of these transport units becomes possible with this attachment.

  • Good visibility conditions
  • Stable construction
  • Arms covered with Remagrip
  • Optionally other arm pads
  • Rotation 360° endlessly
  • Optionally with sideshift available
  • Implementation for plastic barrels optionally

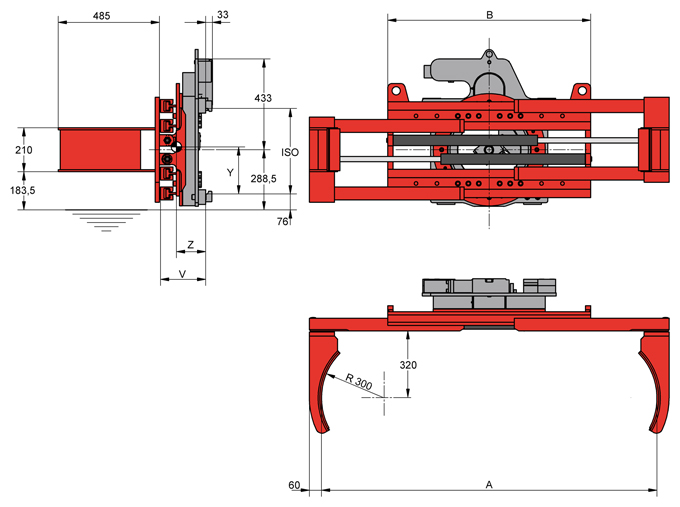

Model Cap. kg LCD mm A mm B mm Md ∆-P = 125 bar Nm ISO V mm CofG Z mm Weight kg
1T455-1 700 320 420-1.600 970 6.013 2 216 146 305
