T415-2 Drum Clamp

with independent sideshift - for cylindrical steel drums - 2 hydraulic functions:, This Drum Clamp can transport 2 or 4 drums palletless and safely.


The KAUP Drum Clamp T415-2 can transport two or four drums safely and without palettes. Therefor the clamp arms are serially vulcanised with rubber.

  • Low lost load - good residual capacity
  • Good visibility conditions
  • Stable construction
  • Independent sideshift serially

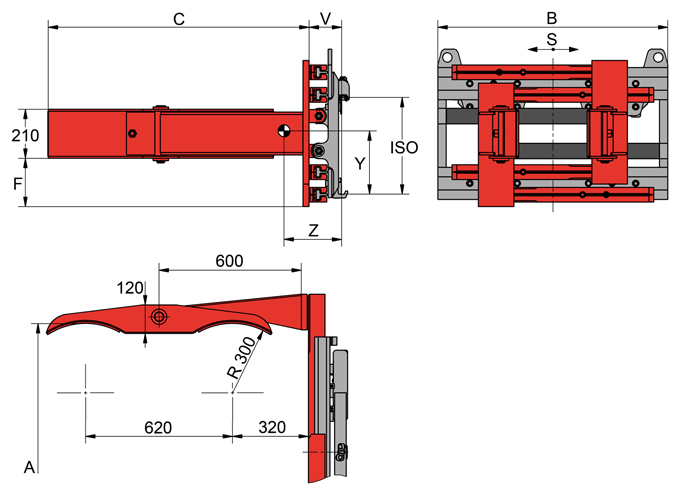

Model Cap. kg LCD mm S mm A mm B mm C mm F mm ISO V mm CofG Z mm CofG Y mm Weight kg
1,5T415-2 2-4 1.250 630 ±100 370-1.550 970 1.105 195 2 133 255 266 310
1,5T415-2 2-4 1.250 630 ±100 370-1.550 970 1.105 195 3 133 255 266 310
2T415-2 2-4 2.000 630 ±100 370-1.670 1.130 1.105 195 2 143 245 264 350
2T415-2 2-4 2.000 630 ±100 370-1.670 1.130 1.105 195 3 143 245 264 350
