2T413G-2H Appliance Clamp Tiltable

with independent sideshift - rubber coated arms - both arms 90° forward tipping - 2 hydraulic functions + solenoid valve

Request Pricing

The KAUP Appliance Clamp tiltable 2T413G-2H can lift loads and set them down safely. This attachment is suited to move stored goods or to load and unload trucks, carriages and containers.

  • Independent sideshift serially
  • Contact pads of the clamp arms up to 90° hydraulically tiltably
  • Load backrest optionally

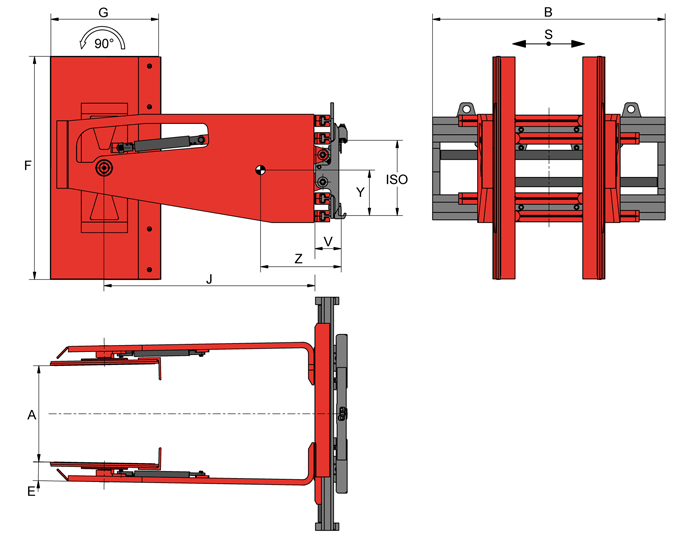

Model Cap. kg LCD mm S mm A mm B mm F mm E mm G mm J mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T413G-2H 300 1.000 ±100 540-2.160 1.260 1.200 102 580 1.000 2 143 640 660 780
2T413G-2H 300 1.000 ±100 540-2.160 1.260 1.200 102 580 1.000 3 143 640 660 780
