T360G Foundry Ladles

2 hydraulic function, To empty ladles to both sides and forwards.

Request Pricing

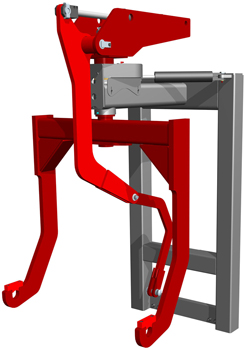

The KAUP Casting Device for Foundry Ladles T360G can be used to empty ladles to the left, on the right and forwards. The attachment is hung up directly in the fork carriage.

  • Good visibility conditions
  • Stable construction
  • Independent sideshift optionally
  • Other implementation on inquiry
Model Cap. kg LCD mm V mm CofG Z mm Weight kg
1,5T360G 750 850 120 510 400
2T360G 1.300 850 120 505 590
4T360G 2.000 1.150 160 850 1.060
6T360G 5.000 815 180 610 1.960
8T360G 5.000 1.500 200 1.240 2.800
