T158 Height Adjustable Fork

for mounting on ISO fork carriage - 1 hydraulic function, The height adjustable fork is used in combination with a hook-on fork as level compensator


The height adjustable fork T158 of KAUP is hung up directly in the ISO carriage and serves as a level compensator. If two height adjustable forks are used at the same time, an additional heave occurs. Height adjustable forks are used together with a hook-on fork.

  • Robust construction
  • An easy assembly

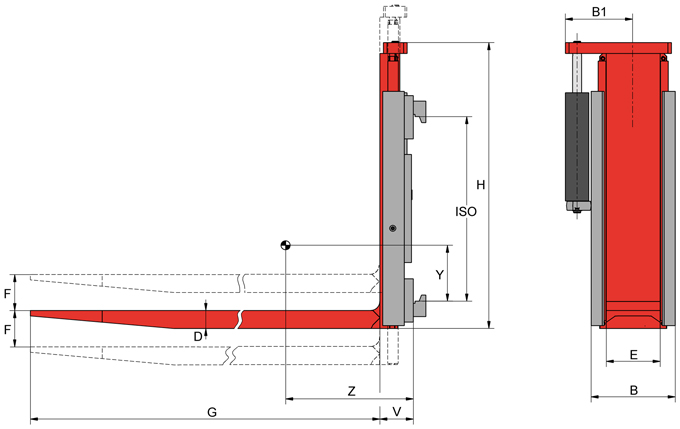

Model Cap. kg LCD mm B mm B1 mm E mm D mm G mm F mm H mm ISO V mm CofG Z mm CofG Y mm Weight app. kg
2,5T158 1.250 500 205 235 120 50 1.200 100 680 2 73 156 162 105
4,5T158 2.500 500 235 255 150 60 1.200 100 800 3 103 273 180 177
6T158 3.000 600 255 275 150 70 1.200 100 980 4 110 248 255 258
