T180KH Foldable Forks

for mounting on ISO fork carriage - hydraulically foldable - 1 hydraulic function


The Foldable Forks T180KH of KAUP are used where shortage of space (for example lift use) or internal transport makes it sometimes necessary to fold on the forks. For it the forks are hung up directly in the fork carriage and are opened hydraulically.

Moreover, the foldable forks can also be combined with other attachments of KAUP, for example bale clamps.

  • Robust construction
  • An easy assembly
  • Very good visibility conditions

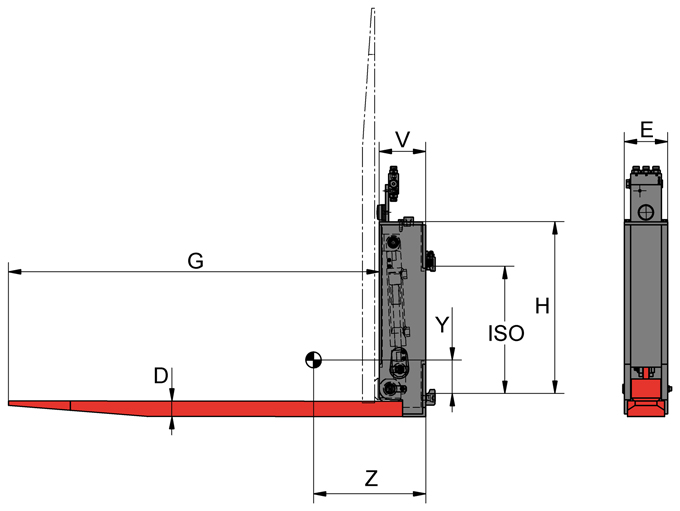

Model Cap. per fork pair kg LCD mm E mm D mm G mm H mm ISO V mm CofG Z mm Weight per piece kg
1T180KH 1.500 500 120 40 1.000 535 2 150 284 80
2T180KH 2.500 500 140 50 1.000 620 2 150 300 100
3T180KH 3.500 500 150 50 1.000 770 3 185 303 132
