10-30T351 Rotator

1 hydraulic function


For extra heavy cases: the KAUP Rotator 360° endless 10 - 30T351. It owns an especially high torque and can use also heavy loads easily as carriages for example.

  • Good visibility conditions
  • Good residual capacity
  • High torque
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Lateral supporting fork and load stabilizers optionally

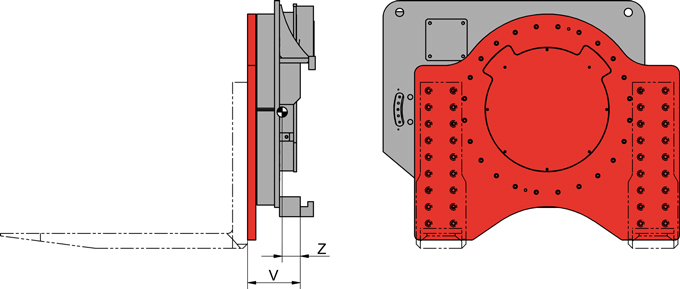

Model Cap. kg LCD mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
10T351 12.000 900 50.000 60 300 190 2.600
15T351 15.000 900 50.000 60 300 190 2.600
25T351 24.000 1.200 115.000 120 300 215 4.500
30T351 28.000 1.200 115.000 120 300 215 4.500
